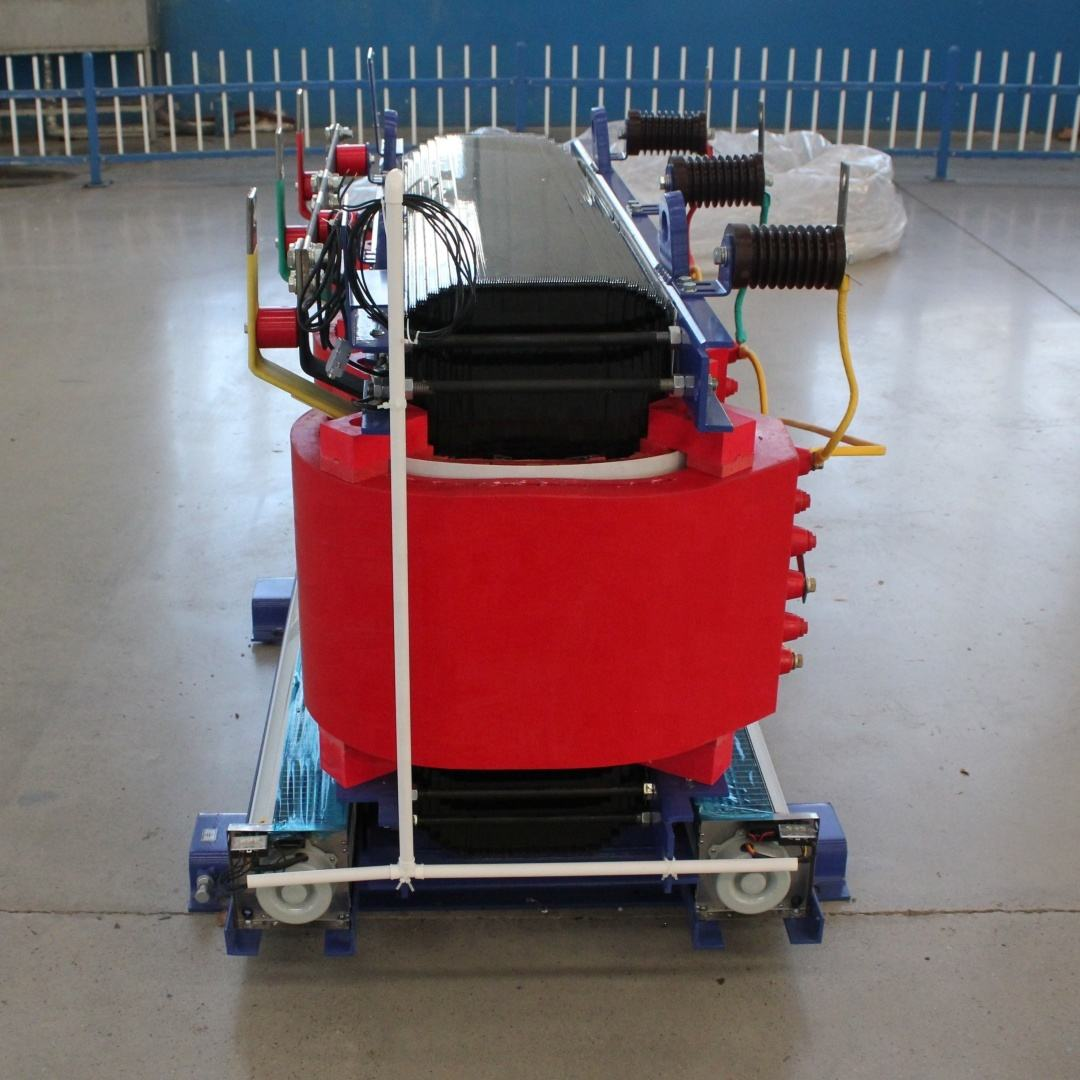

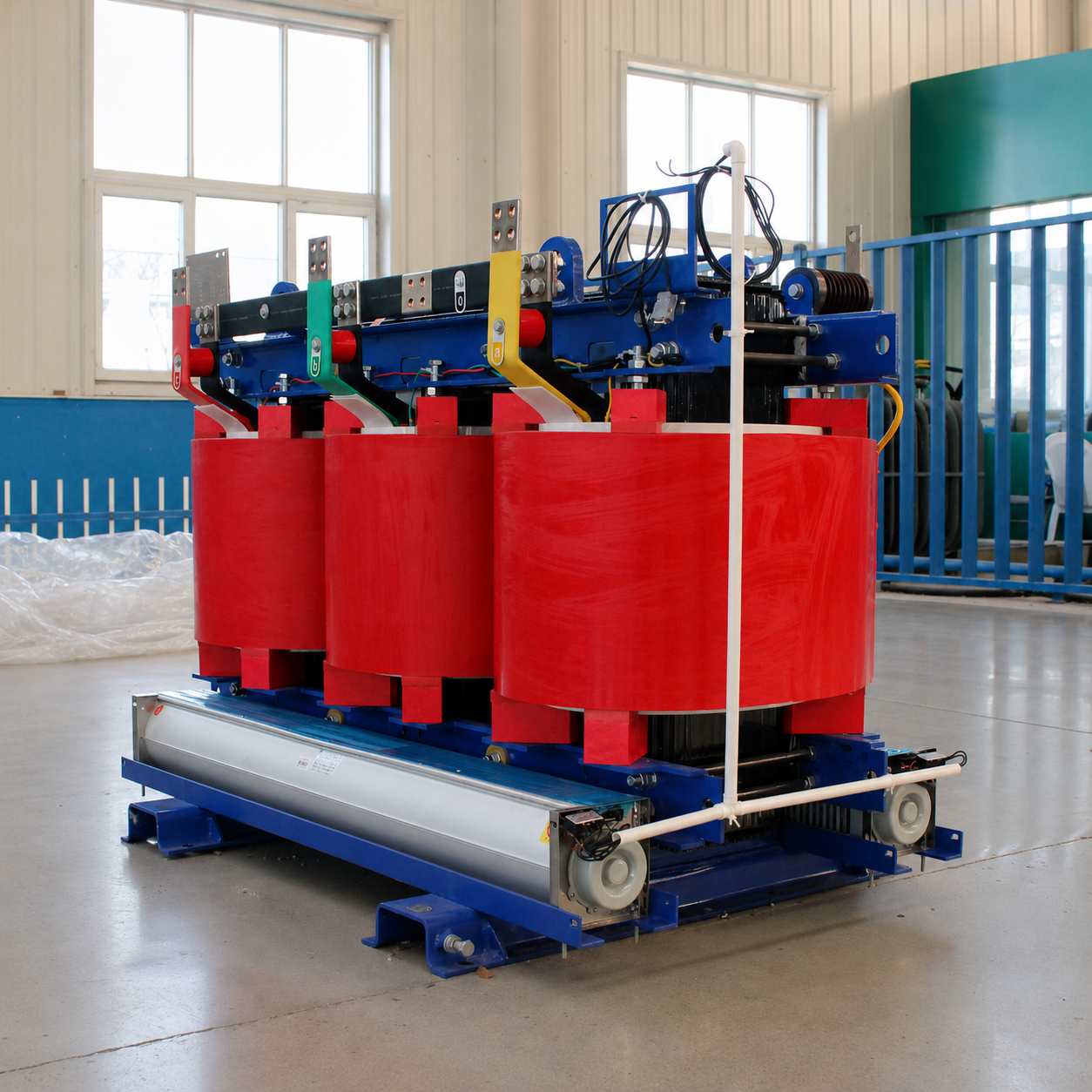

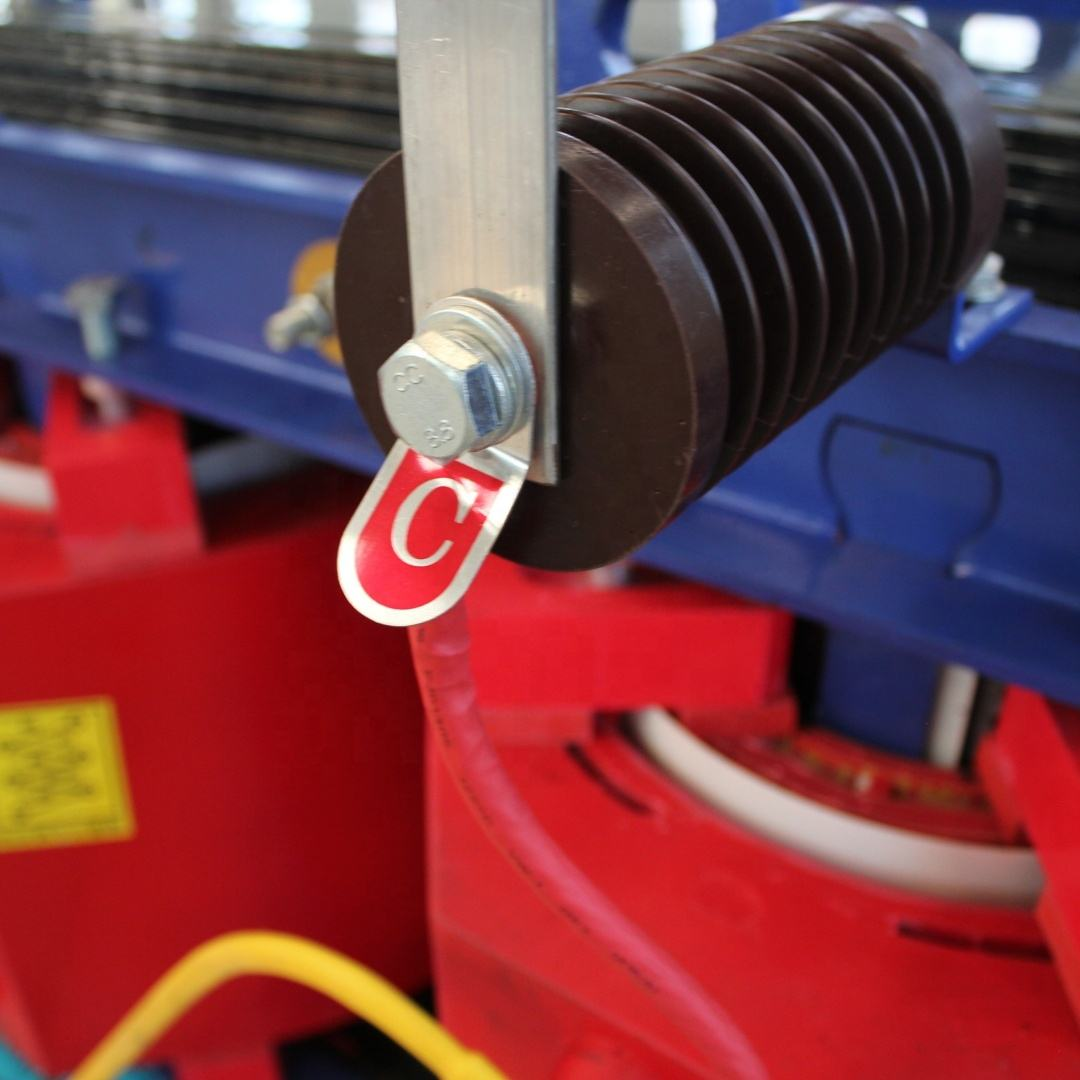

Cast Resin Dry Type Transformers | Safe & Maintenance-Free
Application
SC(B)10&SC(B)11&SC(B)111 series three phase resin-cast dry-type distribution transformer are in conformity with standard of IEC60076 with features of low loss, compact and light weight, low noise level, clamp-proof, anti-fouling, high mechanical strength, flame resisting, strong overload ability and low partial discharge quality, they are application to power transmission and distribution system, hotel, restaurant, commercial building, stadiums, chemical plants, stations, airports, offshore drilling platforms, especially to heavy load centers and places with fire protection requirements.
Product Range
- - Transformer capacity: 10kVA through 100MVA
- - Temperature rise: 100℃
- - Cooling type: AN & AN/AF
- - Three phase frequency: 50/60HZ
- - Primary voltage: 6kV through 40.5KV
- - Secondary voltage: 380V&400V&415&433V or other
Technical Specification
| Type | Voltage combination | Vector group |
Loss(W) | Imped- ance % |
Dimension (L*W*H) % |
Weight (kg) |
|||
|---|---|---|---|---|---|---|---|---|---|
| Primary (kV) |
Tapping range |
Secondary (kV) |
NO Load |
Full Load |
|||||
| SC(B)11-30/10 | 6 | ±2x2.5% | 0.4 or other |
Yyn0 or Dyn11 |
171 | 665 | 4.0 | 680*400*686 | 300 |
| SC(B)11-50/10 | 6.6 | 243 | 941 | 690*400*686 | 360 | ||||
| SC(B)11-80/10 | 7.2 | 324 | 1302 | 730*450*796 | 500 | ||||
| SC(B)11-100/10 | 10 | 360 | 1492 | 730*500*816 | 600 | ||||
| SC(B)11-125/10 | 11 | 423 | 1748 | 780*600*950 | 700 | ||||
| SC(B)11-160/10 | 13.8 | 486 | 2014 | 950*650*1124 | 850 | ||||
| SC(B)11-200/10 | 15 | 558 | 2394 | 990*650*1207 | 950 | ||||
| SC(B)11-250/10 | 20 | 648 | 2613 | 1020*650*1207 | 1100 | ||||
| SC(B)11-315/10 | 22 | 792 | 3287 | 1050*750*1320 | 1250 | ||||
| SC(B)11-400/10 | 24 | 873 | 3781 | 1100*800*1450 | 1550 | ||||
| SC(B)11-500/10 | 30 | 1044 | 4636 | 1140*800*1430 | 1850 | ||||
| SC(B)11-630/10 | 33 | 1206 | 5577 | 1250*800*1500 | 1900 | ||||
| SC(B)11-800/10 | 36 | 1368 | 6603 | 1330*800*1540 | 2200 | ||||
| SC(B)11-1000/10 | 1584 | 7714 | 1400*960*1640 | 2750 | |||||
| SC(B)11-1250/10 | 1881 | 9206 | 6.0 | 1450*960*1690 | 3300 | ||||
| SC(B)11-1600/10 | 2205 | 11144 | 1560*960*1930 | 4000 | |||||
| SC(B)11-2000/10 | 2988 | 13728 | 1680*960*1930 | 4800 | |||||
| SC(B)11-2500/10 | 3240 | 16312 | 1720*1010*1950 | 5500 | |||||
Note: The above parameters are only the parameters of some transformers listed by our company. Any transformer capacity can be customized. (special requirement can be customized.)
