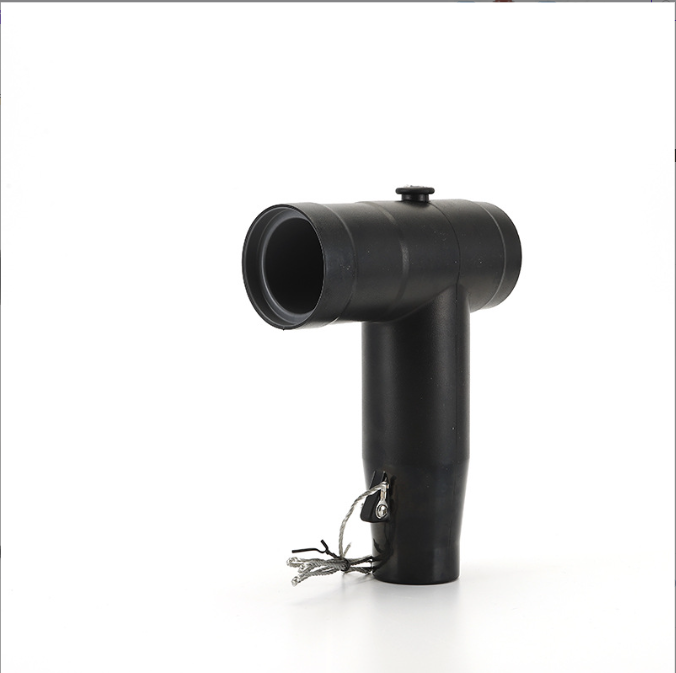

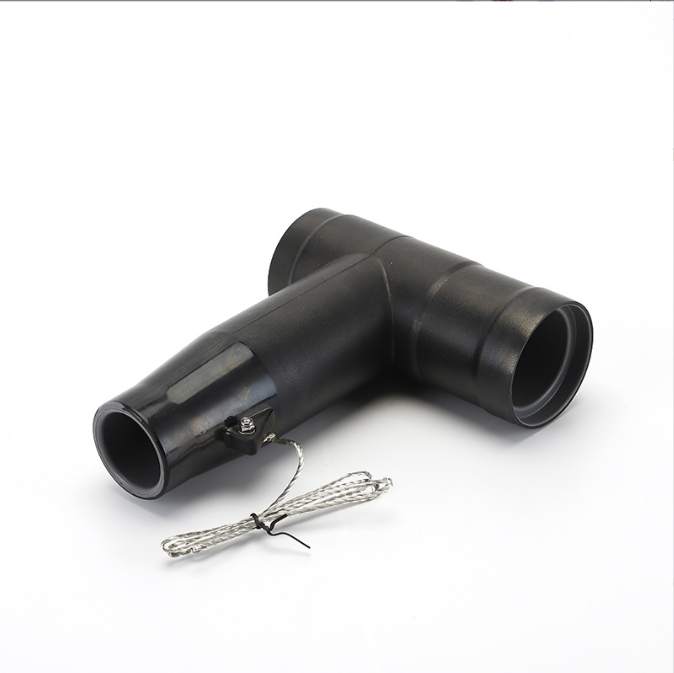

24KV 630A Cable Connector

          24KV 630A European front connector.Applicayion For connection of polymeric cable to transformers, switchgear, motors and other equipment with a premoulded separable connector.For indoor and outdoor installations.System voltage up to 24 kV.Continuous current 630 A .Features Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug.Can be used under the circumstances.Built-in capacitive test point to determine the circuit status or install a fault indicator.No minimum phase clearance requirements.Mounting can be vertical, horizontal, or any angle in between.Installation Without any special tools When finish the installation of elbow connector, the power can be supply directly.
