35KV 630A Cable Connector

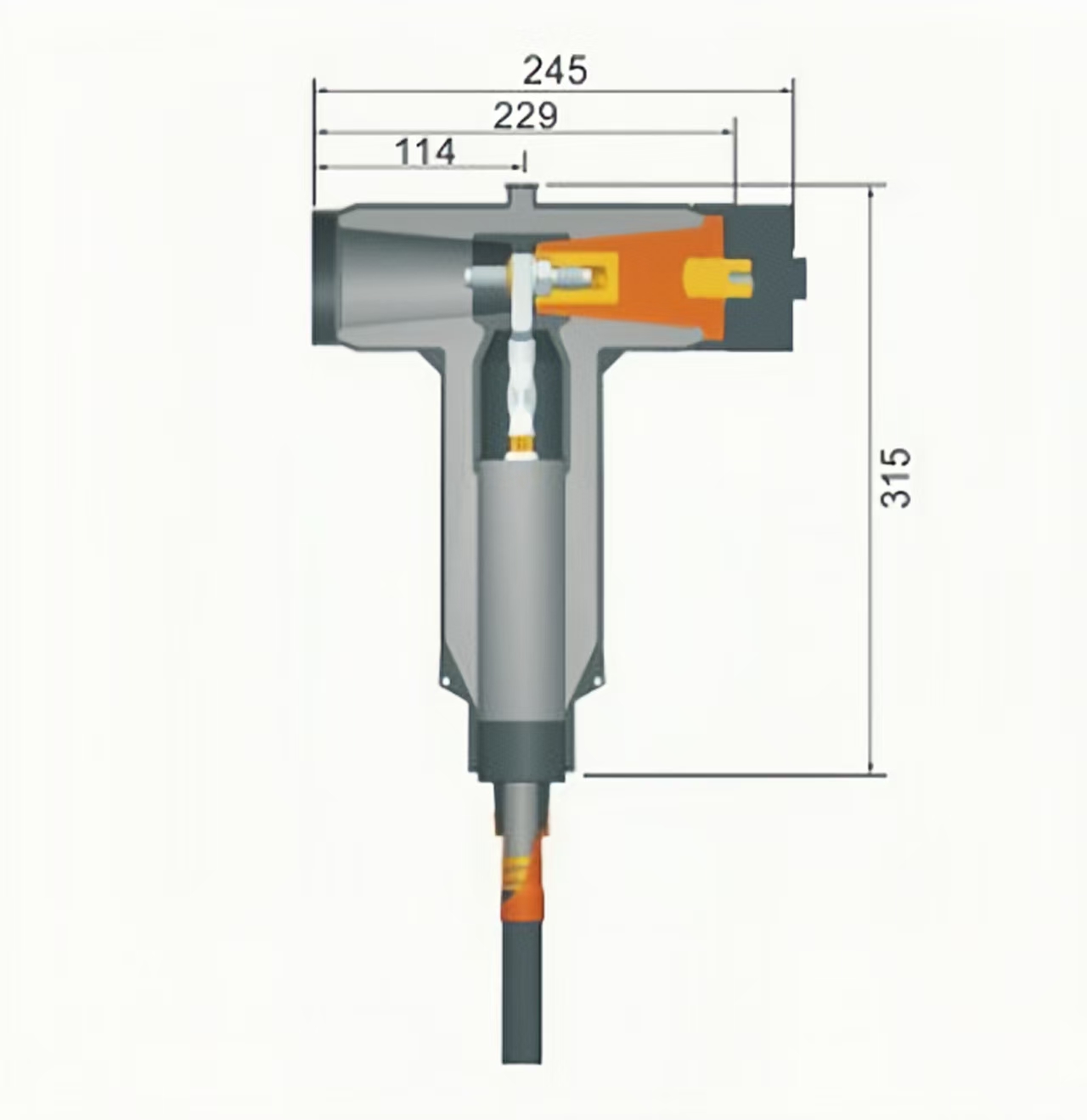

35KV 630A European front connector.Application For connection of polymeric cable to transformers, switchgear, motors and other equipment with a premoulded separable connector.For indoor and outdoor installations.System voltage up to 40.5 kV.Continuous current 630 A .Cable particulars.Features Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug.Can be used under the circumstances.Built-in capacitive test point to determine the circuit status or install a fault indicator.No minimum phase clearance requirements.Mounting can be vertical, horizontal, or any angle in between.Installation Without any special tools.When finish the installation of elbow connector, the power can be supply directly.According to the Installation Instruction Sheet.
| Reference No. | Conductor cross section (mm²) | Stretch range over insulation (mm) | Cable Type | Size of stress cone |
| DR TT-35/630-50 | 50 | 31 | 26/35 | A |
| DR TT-35/630-70 | 70 | 32.6 | 26/35 | B |
| DR TT-35/630-95 | 95 | 34.2 | 26/35 | C |
| DR TT-35/630-120 | 120 | 35.6 | 26/35 | C |
| DR TT-35/630-150 | 150 | 37.2 | 26/35 | D |
| DR TT-35/630-185 | 185 | 38.7 | 26/35 | E |
| DR TT-35/630-240 | 240 | 41.1 | 26/35 | F |
| DR TT-35/630-300 | 300 | 43.2 | 26/35 | G |
| DR TT-35/630-400 | 400 | 46.4 | 26/35 | H |
| DR TT-35/630-500 | 500 | 49.2 | 26/35 | I |
| DR TT-35/630-630 | 630 | 52.5 | 26/35 | I |
