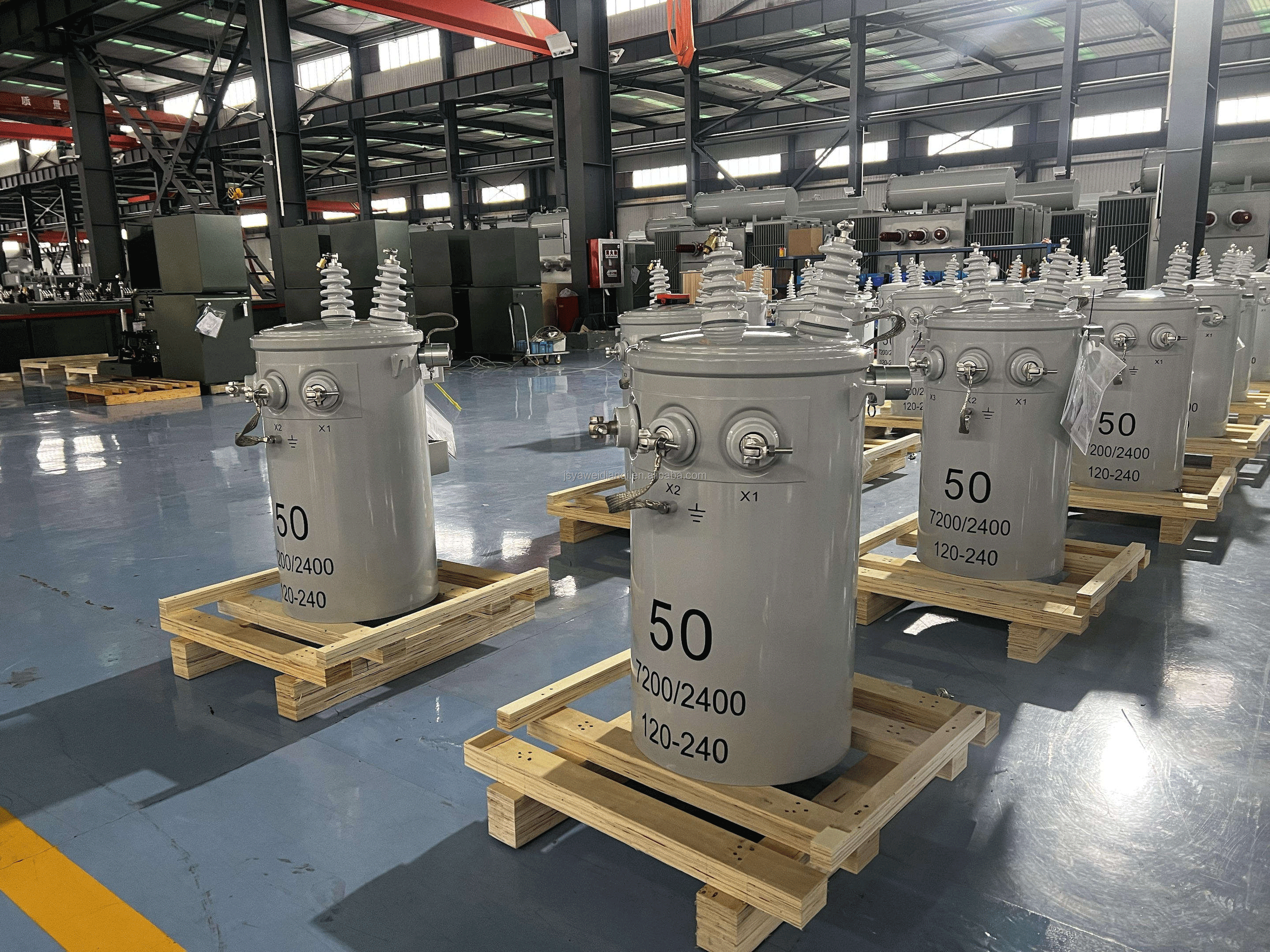

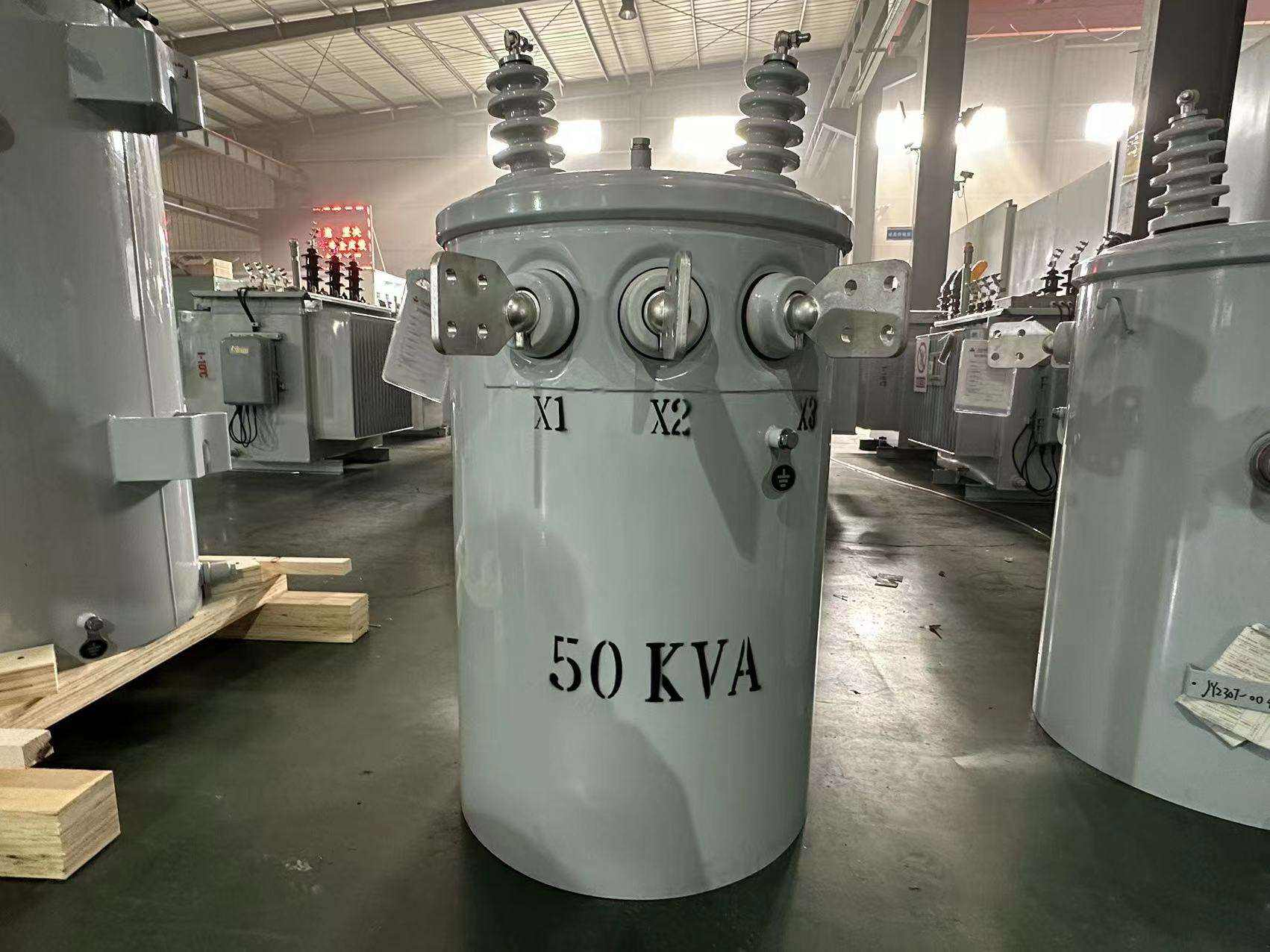

Single-Phase Pole-Mounted Transformer
Product Description
Our completely self-protected distribution transformer is used to offer electricity to facilitate lighting system, agricultural production and industrial factory in rural place, remote areas, scattered villages, and it is also applicable for pole-mounted distribution lines for railways and urban power grids, it equipped with HJ international cap breaker with load signal lamp.
Standards
IEEE & ANSI C57.12.00, IEEE & ANSI C57.12.20, IEEE & ANSI C57.12.90
Product Range
- - Transformer capacity: 10 through 500kVA
- - Polarity: Additive or subtractive
- - Temperature rise: 65℃
- - Primary voltage: 2400V through 34500GrdY, 19920V
- - Cooling type: ONAN
- - Secondary voltage: 120/240V, 240/480V, 139/277V, 600V
- - Single phase frequency: 50/60HZ
- - Taps: ±2x2.5% HV side
SINGLE PHASE POLE TRANSFORMER
| Capacity (kVA) |
Primary Rating (V) |
Amorphous core | GRGO core | ||
|---|---|---|---|---|---|
| No load loss(W) | Load loss(W) | No load loss(W) | Load loss(W) | ||
| 3 | 13800/7967, 13200/7620, 11000/6350 or others |
8 | 45 | 9 | 45 |
| 5 | 8 | 75 | 19 | 75 | |
| 10 | 12 | 120 | 36 | 120 | |
| 15 | 15 | 195 | 50 | 195 | |
| 25 | 18 | 290 | 80 | 290 | |
| 37.5 | 30 | 360 | 105 | 360 | |
| 50 | 32 | 500 | 135 | 500 | |
| 75 | 45 | 650 | 190 | 650 | |
| 100 | 50 | 850 | 210 | 850 | |
| 167 | 65 | 1410 | 350 | 1410 | |
Note: The above parameter is only subject to our standard design, special requirement can be customized.
COMPLETELY SELF PROTECTION TRANSFORMER
| Model | Rated Capacity(kVA) |
Primary Rating(V) |
Tapping Range(%) |
Secondary Rating(V) |
LOSS(W) | |
|---|---|---|---|---|---|---|
| No load loss | Load loss | |||||
| CSP-10 | 10 | 34500/19920, 33000/17231, 20000/11547, 13200/7620, 11000/6350 or others |
±2x2.5% or others |
120-240, 240-480, 250-500 or others |
50 | 170 |
| CSP-15 | 15 | 65 | 195 | |||
| CSP-25 | 25 | 105 | 290 | |||
| CSP-37.5 | 37.5 | 140 | 360 | |||
| CSP-50 | 50 | 180 | 500 | |||
| CSP-75 | 75 | 250 | 650 | |||
| CSP-100 | 100 | 275 | 850 | |||
| CSP-167 | 167 | 455 | 1410 | |||
Note: The above parameters are only the parameters of some transformers listed by our company. Any transformer capacity can be customized. (special requirement can be customized)
