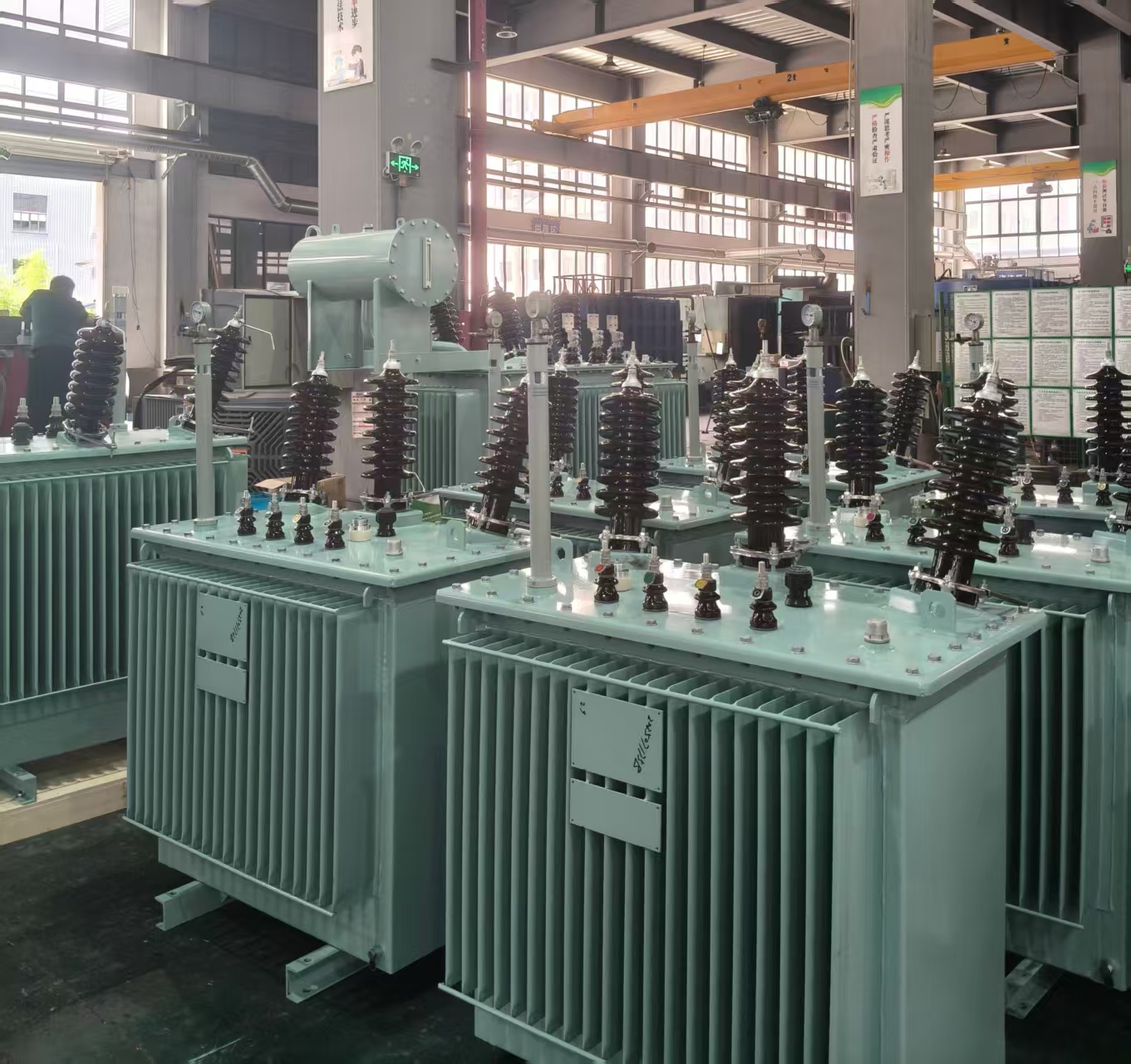

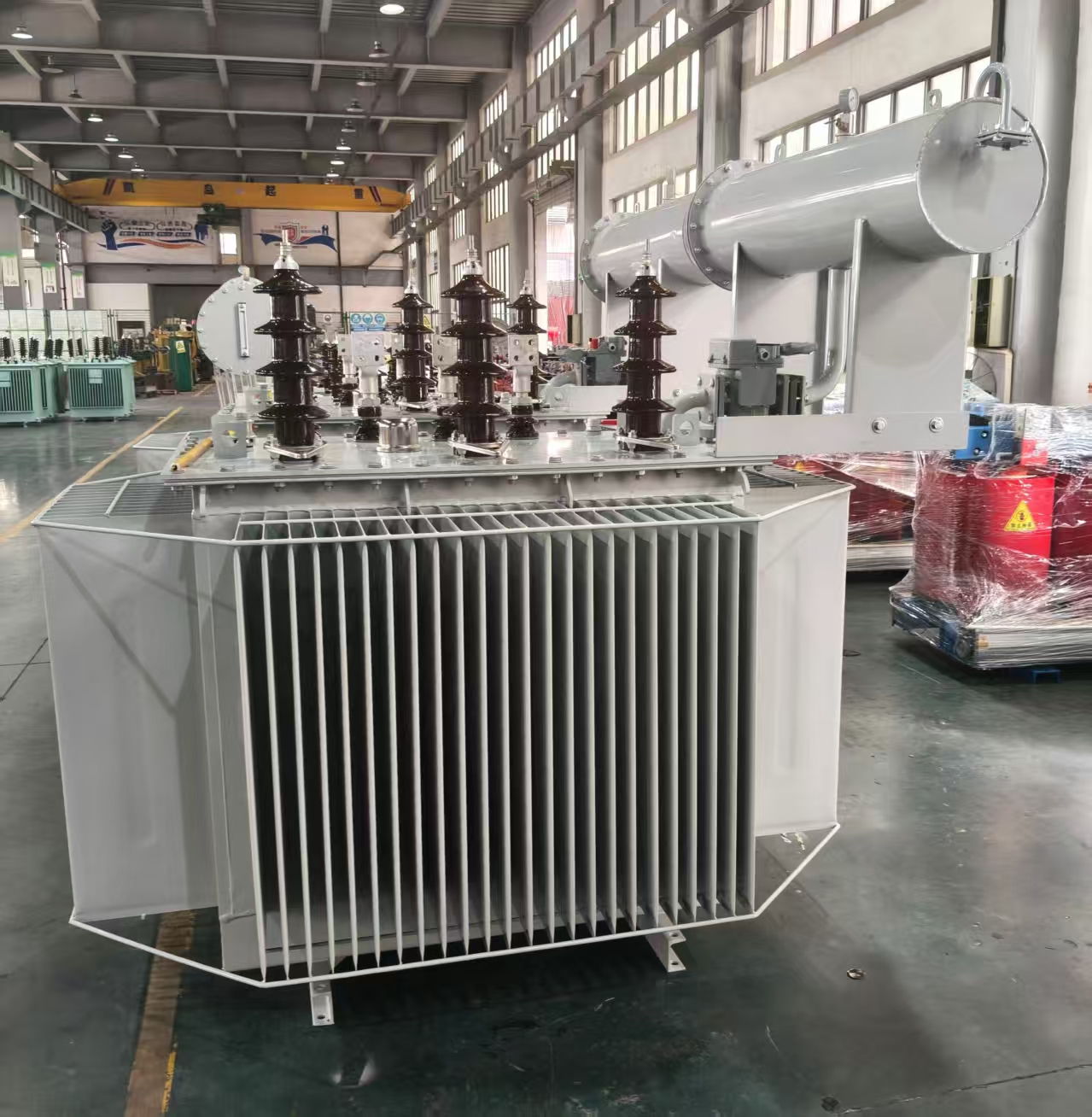

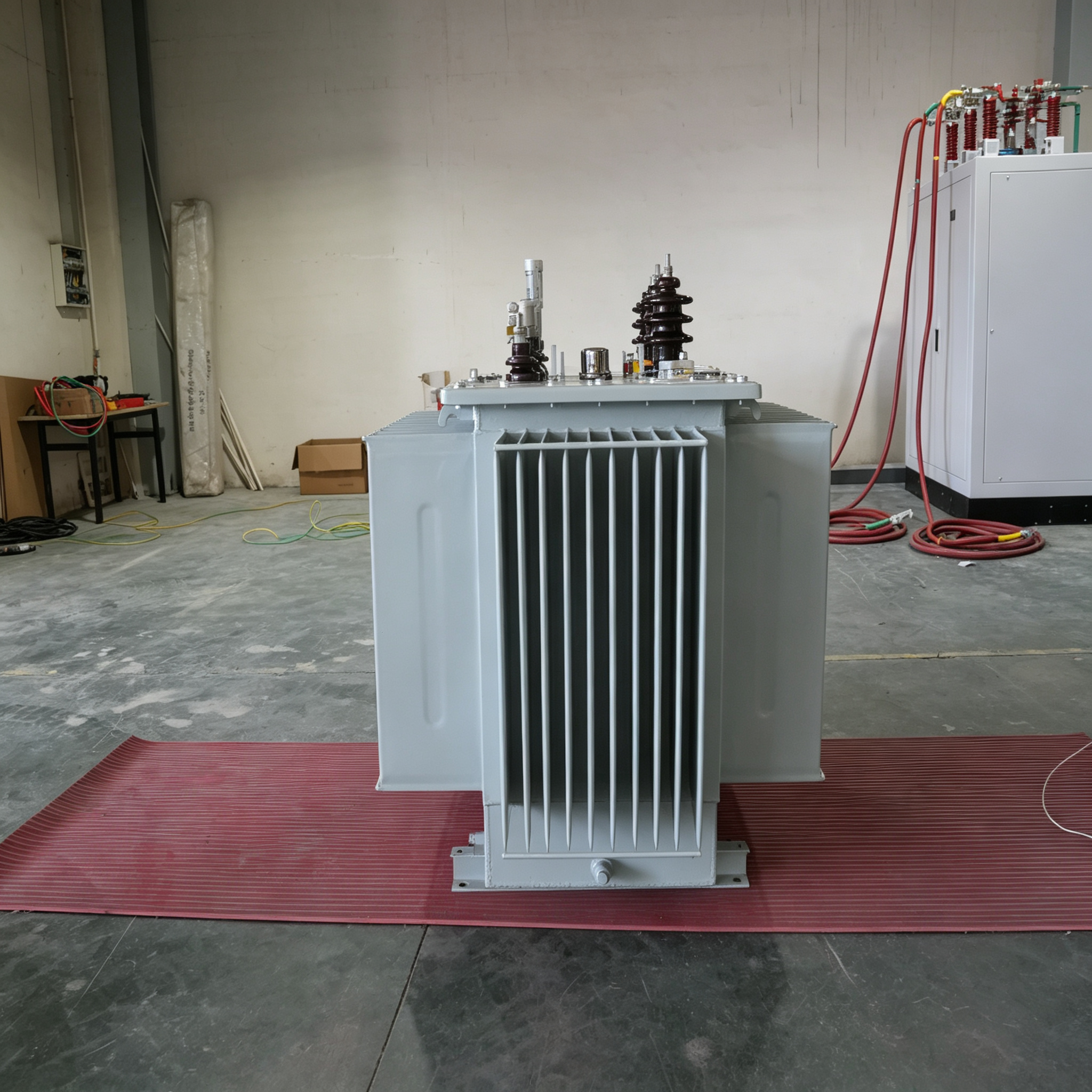

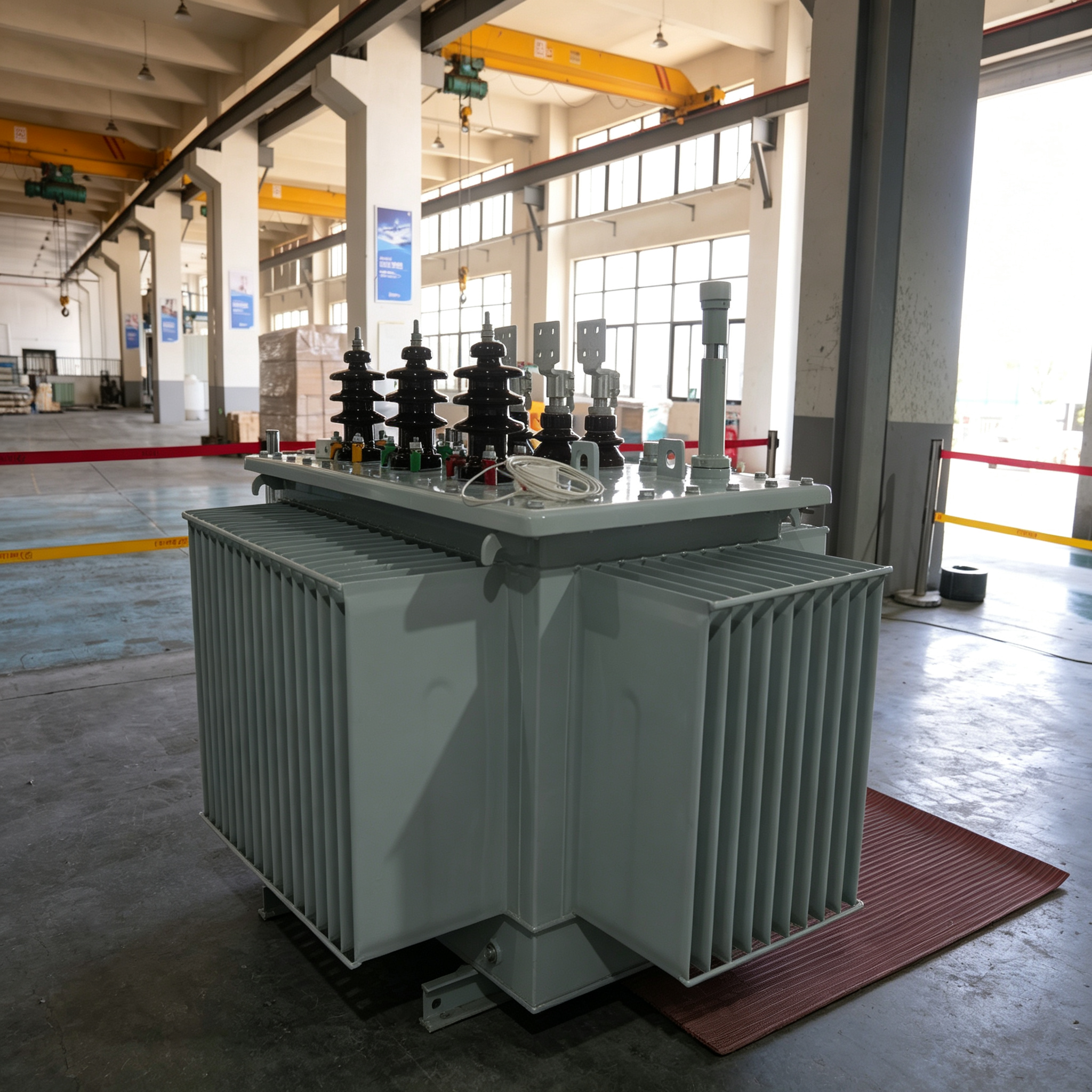

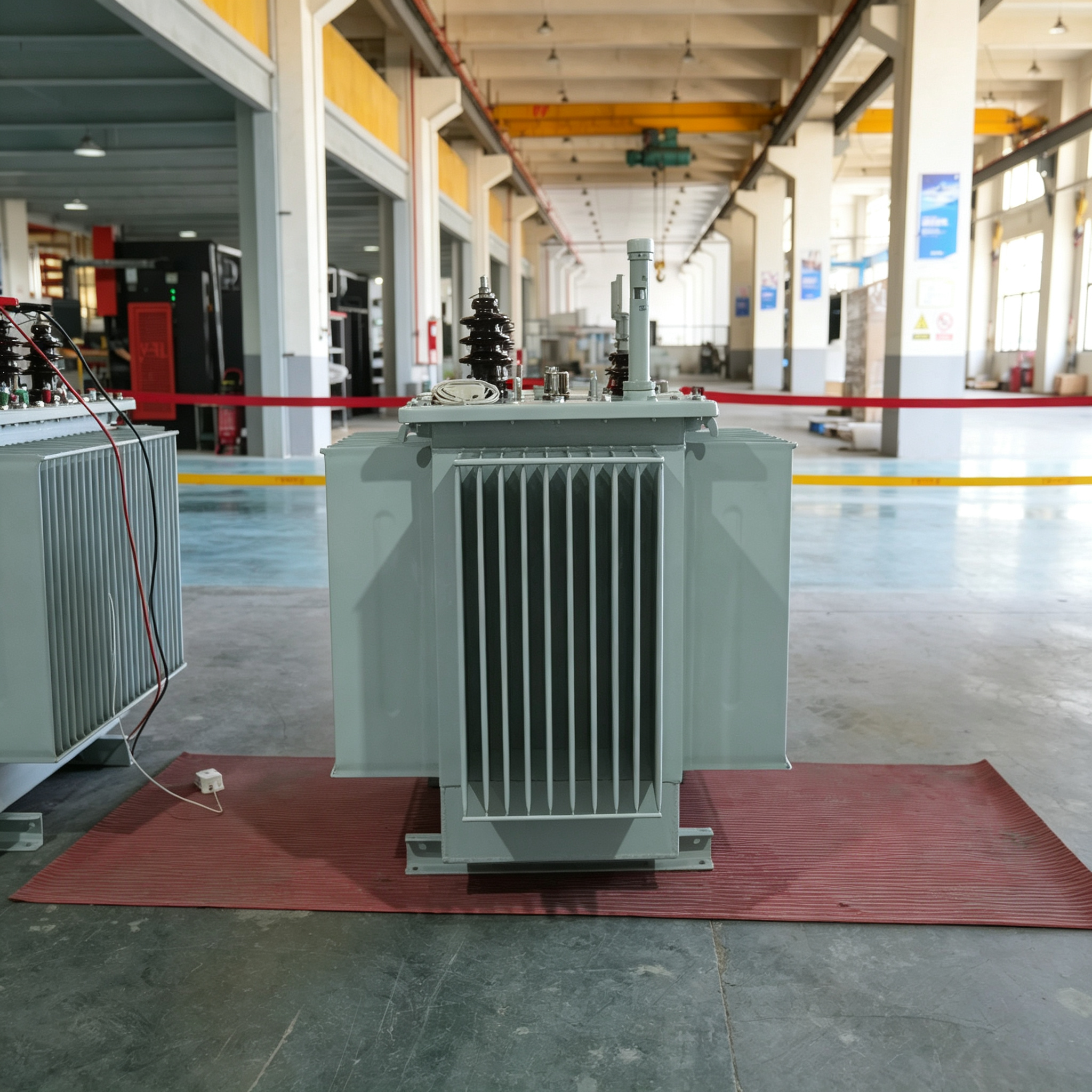

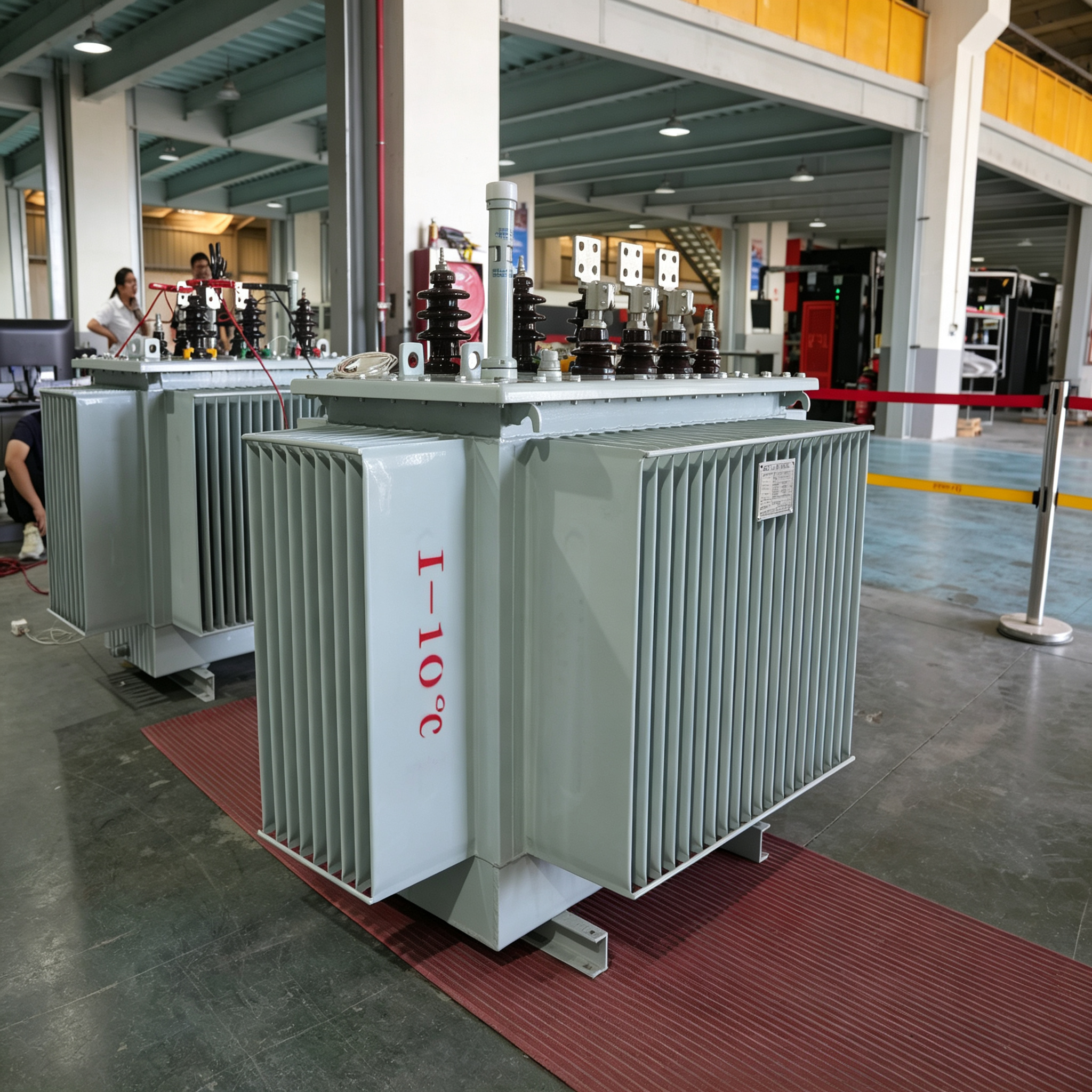

Oil Immersed Distribution & Power Transformers for Grids
Characteristics
- The transformer core is made of amorphous alloy band, no-load loss is 60% lower than that of S9 transformer and 25% lower than the stipulated value of JB/T10318.
- The transformer adopts Ddyn11 to reduce the effect of harmonic wave to power grid and improve power supply quality.
- The transformer adopts vacuum casting tank core, which greatly improves the reliability and stability.
- The transformer adopts vacuum oiling method, which fully eliminates the bubbles, forming into oil tank.
- According to years of practical experiences, our products adopt advanced technology, so the winding insulation and lightning impulse test's full-wave peak voltage is 25% higher than that of national standard, thus to make sure that the transformer can run safely and reliably.
core
- Width of band: 142mm, 170mm, 213mm
- Height of core aperture: 150-1000mm
- Width of core aperture: 65-500mm
- Thickness of folded core aperture: 20-180mm
- Core height: Width of band+4mm(cooling thickness epoxy resin)
- Width of band+2mm(cooling thickness of gunmetallic)
- Thickness of folded core joint: Thickness of folded corex1.18mm
- Perimeter of outer max band is 3500mm.
Main parameters
| Rated capacity (kVA) |
Voltage combination and tapping range (kV) | Vector group | No-load loss (W) |
Load loss (W) |
No-load current (%) |
Impedance voltage (%) |
|---|---|---|---|---|---|---|
| 30 | High voltage 6, 6.3, 10, 10.5, 11 High voltage tapping range ±5±2×2.5 Low voltage 0.4 |
Dyn11 | 33 | 600 | 1.70 | 4.0 |
| 50 | 43 | 870 | 1.30 | |||
| 63 | 50 | 1040 | 1.20 | |||
| 80 | 60 | 1250 | 1.10 | |||
| 100 | 75 | 1500 | 1.00 | |||
| 125 | 85 | 1800 | 0.90 | |||
| 160 | 100 | 2200 | 0.70 | |||
| 200 | 120 | 2600 | 0.70 | |||
| 250 | 140 | 3050 | 0.70 | |||
| 315 | 170 | 3650 | 0.50 | |||
| 400 | 200 | 4300 | 0.50 | |||
| 500 | 240 | 5160 | 0.50 | |||
| 630 | 320 | 6200 | 0.30 | |||
| 800 | 380 | 7500 | 0.30 | |||
| 1000 | 450 | 10300 | 0.30 | |||
| 1250 | 530 | 12000 | 0.20 | 4.5 | ||
| 1600 | 630 | 14500 | 0.20 | |||
| 2000 | 750 | 17400 | 0.20 | |||
| 2500 | 900 | 20200 | 0.20 | 5 |
Type SH16-M technical parameters
| Type | Rated capacity (kVA) |
Voltage combination (kV) | Vector group | No-load loss (W) |
Load loss (W) |
No-load current (%) |
Impedance voltage (%) |
Outline dimensions (mm) L H B |
Installation center distance (L1xL2) (mm) |
Weight of oil (kg) |
Total weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SH16-M-50/10 | 50 | High voltage 6, 6.3, 10, 10.5, 11 High voltage tapping range ±5±2×2.5 Low voltage 0.4 |
Dyn11 | 38 | 870 | 0.9 | 4.0 | 950 1040 620 | 400x650xΦ14 | 160 | 680 |
| SH16-M-100/10 | 100 | 58 | 1500 | 0.7 | 4.0 | 1060 1070 770 | 400x650xΦ14 | 190 | 890 | ||
| SH16-M-160/10 | 160 | 78 | 2200 | 0.5 | 4.0 | 1050 1150 930 | 400x650xΦ14 | 230 | 1190 | ||
| SH16-M-200/10 | 200 | 90 | 2600 | 0.5 | 4.0 | 1110 1170 930 | 550x650xΦ19 | 270 | 1300 | ||
| SH16-M-250/10 | 250 | 110 | 3050 | 0.5 | 4.0 | 1180 1180 1010 | 550x650xΦ19 | 300 | 1460 | ||
| SH16-M-315/10 | 315 | 130 | 3650 | 0.4 | 4.0 | 1180 1180 1010 | 550x650xΦ19 | 240 | 1400 | ||
| SH16-M-400/10 | 400 | 160 | 4300 | 0.4 | 4.0 | 1200 1180 1010 | 550x650xΦ19 | 280 | 1660 | ||
| SH16-M-500/10 | 500 | 190 | 5150 | 0.4 | 4.0 | 1270 1300 1160 | 660x700xΦ19 | 300 | 1950 | ||
| SH16-M-630/10 | 630 | 230 | 6200 | 0.3 | 4.5 | 1450 1330 1240 | 820x700xΦ19 | 480 | 2450 | ||
| SH16-M-800/10 | 800 | 280 | 7500 | 0.3 | 4.5 | 1520 1460 1380 | 820x700xΦ19 | 520 | 2900 | ||
| SH16-M-1000/10 | 1000 | 330 | 10300 | 0.3 | 4.5 | 1720 1510 1460 | 820x700xΦ19 | 680 | 3500 | ||
| SH16-M-1250/10 | 1250 | 390 | 12000 | 0.2 | 4.5 | 1760 1650 1330 | 820x700xΦ19 | 800 | 3980 | ||
| SH16-M-1600/10 | 1600 | 470 | 14500 | 0.2 | 4.5 | 1980 1710 1380 | 820x700xΦ19 | 850 | 5350 | ||
| SH16-M-2000/10 | 2000 | 570 | 17400 | 0.2 | 5.0 | 2085 1790 1545 | 820x700xΦ19 | 1010 | 6350 | ||
| SH16-M-2500/10 | 2500 | 680 | 20200 | 0.2 | 5.0 | 2400 2350 1500 | 820x700xΦ19 | 1050 | 8200 |
Voltage class & Power frequency withstand voltage of the product
| Voltage class (kV) |
Highest voltage for equipment Effective value of Maximum phase voltage (kV) |
Rated short-time power frequency withstand voltage Effective value of Power-frequency withstand voltage (kV/min) |
Rated lightning impulse withstand voltage Full wave peak value of rated voltage Lightning impulse withstand voltage (kV) |
|---|---|---|---|
| 0.6 | ≤1.1 | 3 | — |
| 3 | 3.5 | 18 | 40 |
| 6 | 6.9 | 25 | 60 |
| 10 | 11.5 | 35 | 75 |
| 20 | 23 | 50 | 125 |
