DRM-24 SF6 Gas Insulated Switchgear 24KV

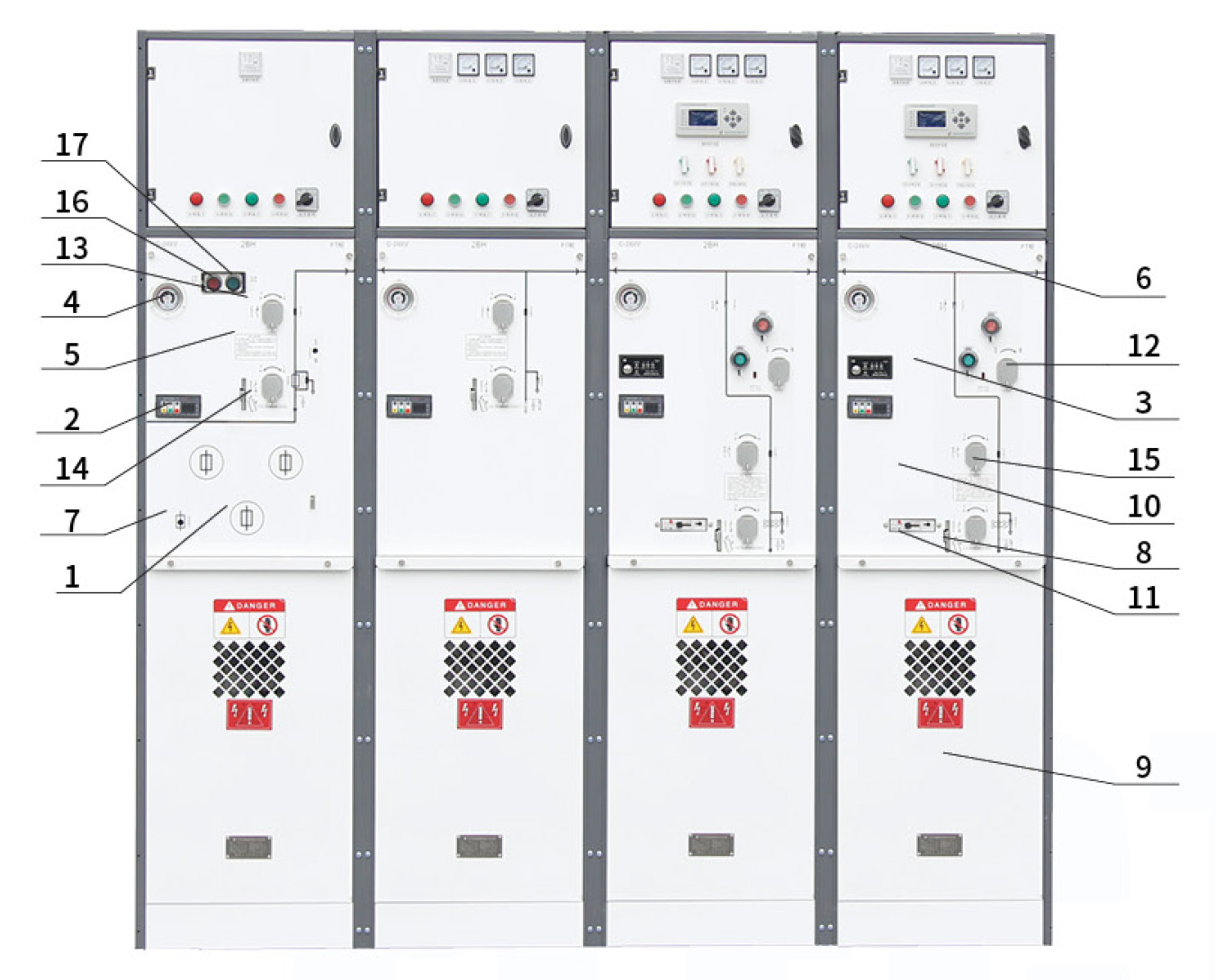

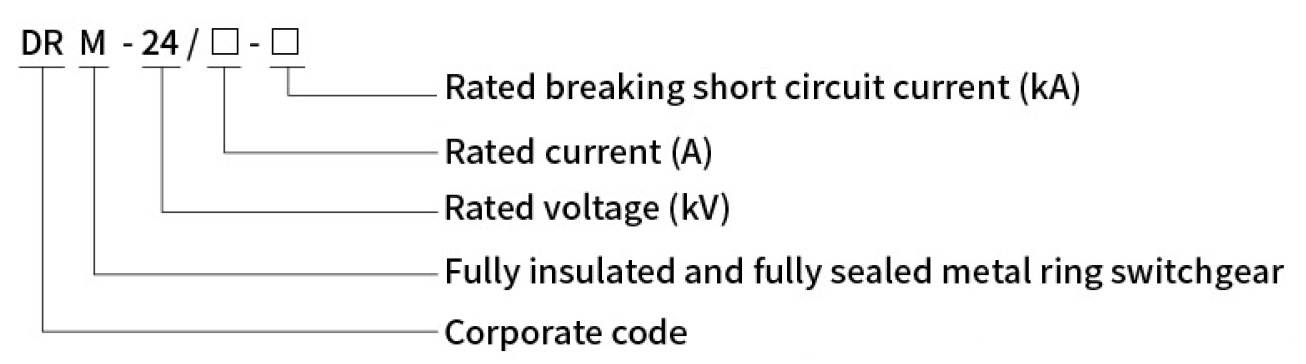

Model and meaning

Product conformity

◆International standard

IEC60056,IEC60298,IEC60129,IEC60420,IEC60265,IEC60694,etc.

◆Chinese standard

GB3804,GB3906,GB11022,etc.

Normal service condition

suitable for high and low temperature (+40°C ~-40°C), wet, dusty, salt pollution, mine, high altitude (less than 4000 meters) and other environments.short-term immersion within 24 hours does not affect the use.

Note: If the altitude is higher, please indicate the specific altitude.

Main features of product

◆DRM-24 series gas cabinet SF6 gas as arc extinguishing and insulation medium.

◆Switch cabinet is fully sealed, fully insulated structure; Bus bars, switches and live parts are completely enclosed in stainless steel housing.

◆The chamber is filled with 0 04Mpa SF6 gas, the protection level is up to IP67: The whole switch device is completely unaffected by the external environment, even in extreme cases such as short-term flooding can ensure the normal operation of the switch, and the product is maintenance-free for life.

◆The switchgear has a perfect "five prevention" interlock device, which completely prevents personnel and equipment operation failures caused by human error.

◆All switchgear has a reliable safe pressure relief channel, which can guarantee the personal safety of the operator even in extreme circumstances.

◆Switchgear is divided into two categories: fixed unit combination and expandable unit combination.

◆The switch cabinet usually enters and exits from the front, and can also realize side exit or side expansion according to different installation positions.

◆The size of the cabinet is easy to install, and can be suitable for small space and poor environmental conditions.

◆The switch cabinet can be configured with electric, remote control and monitoring devices according to different needs of users.

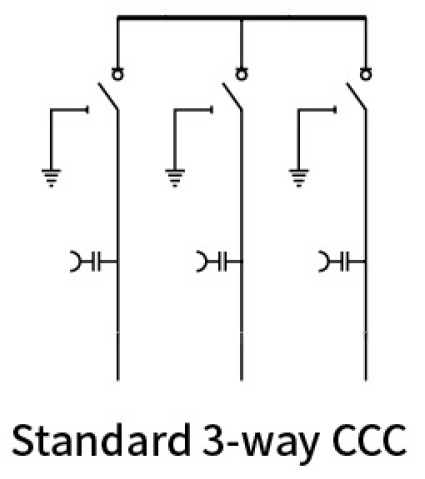

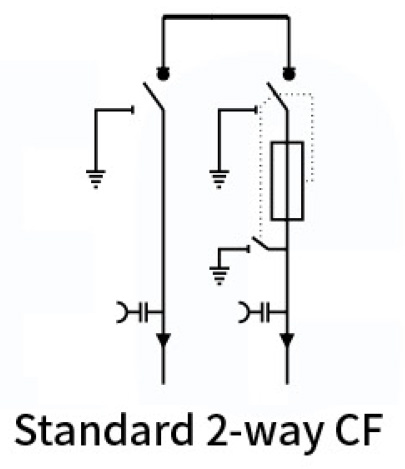

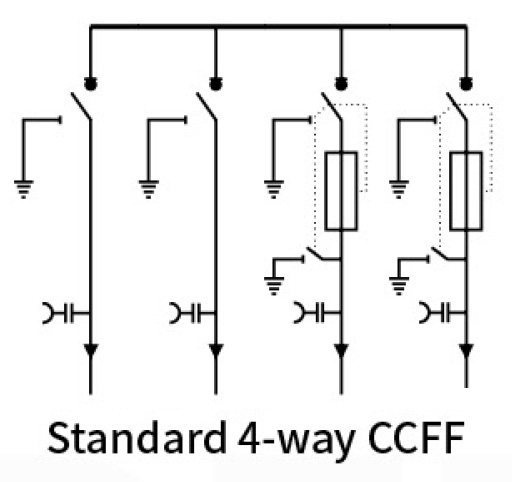

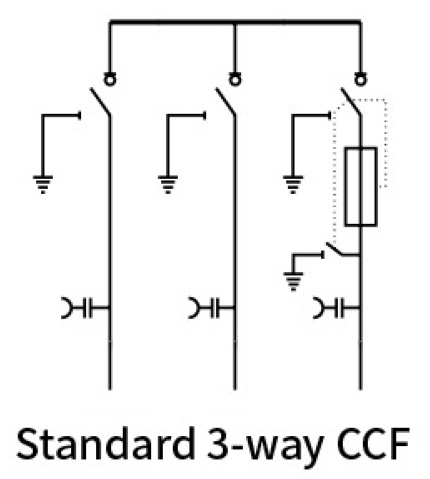

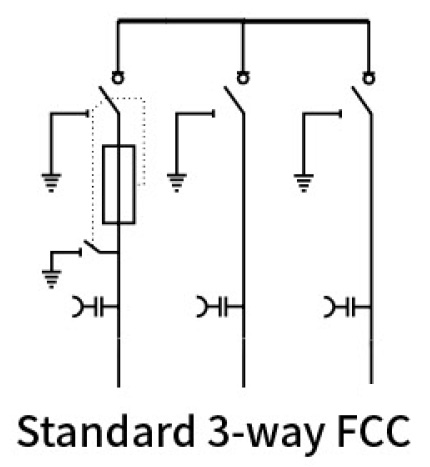

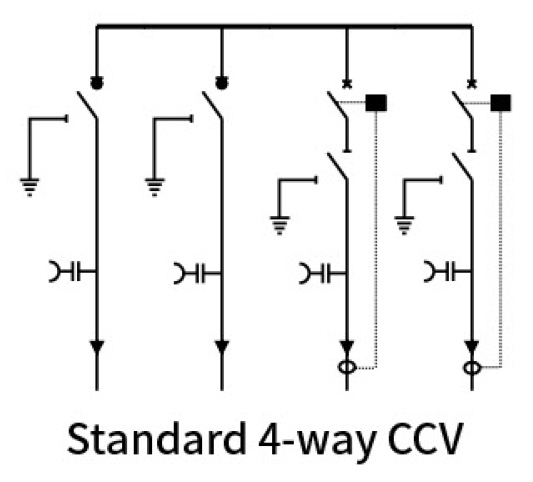

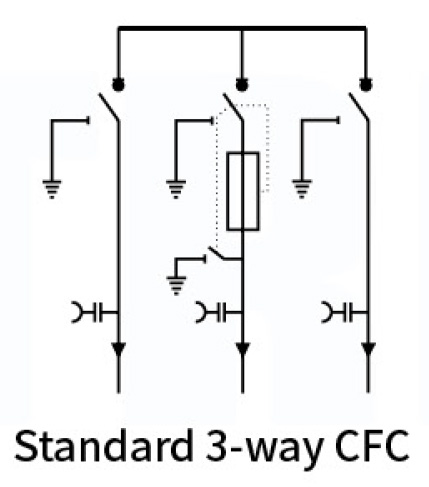

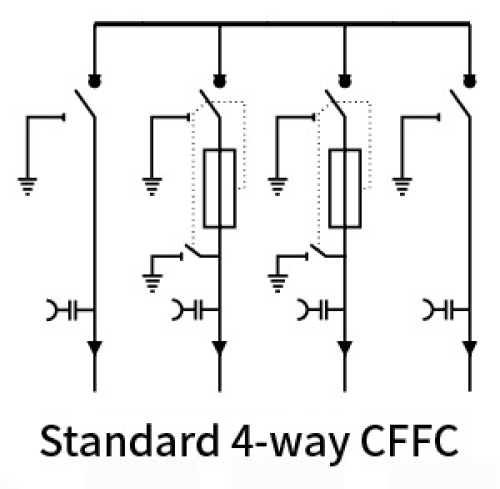

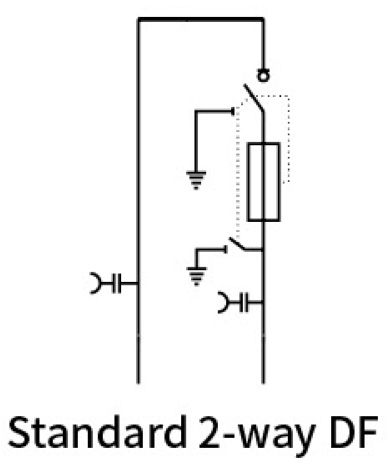

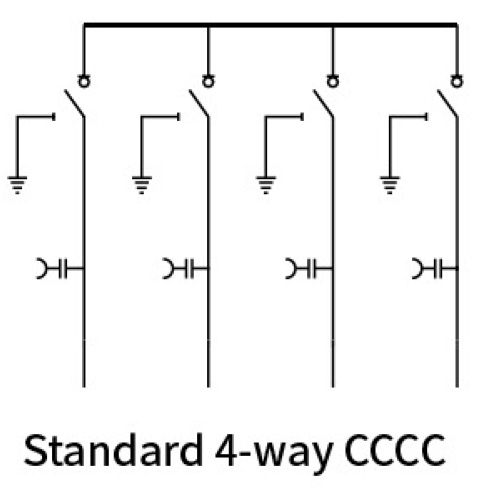

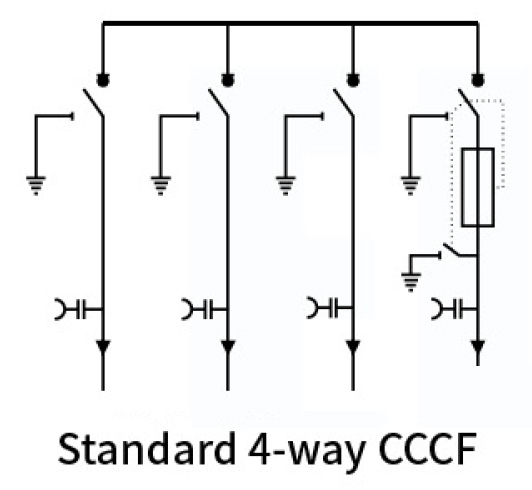

Flexible outlet and expansion methods

All DRM-24 modules can be connected by side outlet and side expansion or side outlet and top expansion according to user requirements, which meets the needs of power supply schemes to the maximum extent.

Performance index

Sf6 gas pressure                                     The absolute pressure at 20°C is 0.04Mpa

Annual gas leakage rate                               0.05%

Class of protection                                          IP67

Air chamber stainless steel thickness        The 3.0 mm

Bus bar

Switchgear inside the bus                             400mm²Cu

Switchgear ground bus                                  150mm²Cu

colour

Switch cabinet front panel                                                RAL 7012

Side panel and cable room front cover plate              RAL 7035

Meet the criteria

GB/T11022 GB3906 GB1985 GB3309

GB16926 GB38041 GB1984

IEC60056 IEC60129 IEC60256

IEC60298 IEC60420 IEC60694

Normal operating environment conditions

Maximum temperature                                     40℃

Minimum temperature                                      To 40 °C

Maximum mean relative humidity                 ≤ 95%

Sea level                                                               ≤ 2000 m
