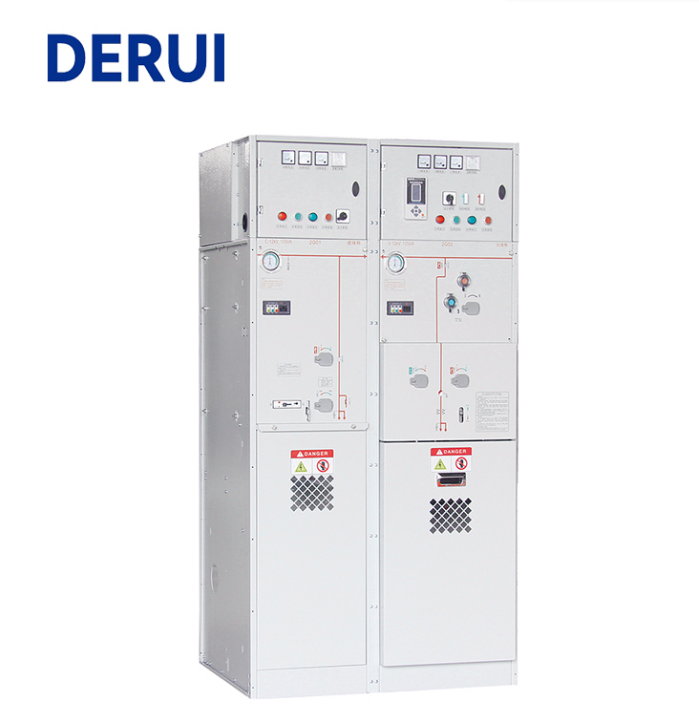

What is an SF₆ Gas-Filled Cabinet?
The SF₆ gas-filled cabinet, also known as SF₆ gas-insulated metal-enclosed switchgear, has its core feature of integrating key electrical components such as SF₆ circuit breakers, SF₆ load switches, vacuum interrupters, and SF₆ voltage transformers， into a sealed metal enclosure.
Derui Electric Company The SF₆ gasinside the enclosure, which is compressed to a high pressure, serves as the insulation and arc-extinguishing medium. Compared with traditional air-Insulated Switchgear, this structure fundamentally eliminates the impact of external environments on equipment performance, endows the equipment with comprehensive functional advantages, and thus makes it an irreplaceable key product in the power system.
As a crucial component in the power sector, the performance of the SF₆ gas-filled cabinet is directly related to the operational efficiency and safety factor of the distribution network. Meanwhile, SF₆ gas, as the core medium of the gas-filled cabinet, runs through the entire life cycle of the product operation and becomes the "soul element" that determines the equipment performance.
SF₆ gas-insulated switchgear is widely used in the power equipment field, with four main functions:
1.Excellent insulation performance
The molecular structure of SF₆ is stable, and it has extremely strong electrical insulation performance, with an insulation strength 2.5–3 times that of air. In high-voltage and ultra-high-voltage power grids, it can effectively isolate live components from grounding components, avoiding faults such as leakage and short circuits, and ensuring stable equipment operation.
2.Efficient arc-extinguishing medium
This is the most critical characteristic of SF₆ switchgear. When the high-voltage switch breaks the fault current, an arc is generated. SF₆ gas can quickly absorb free electrons generated by the arc, suppress the combustion and diffusion of the arc, and extinguish the arc in an extremely short time, preventing explosion or fire caused by arc erosion of equipment, which greatly improves the breaking capacity and safety of SF₆ distribution cabinets.
3.Chemical stability and anti-corrosion
SF₆ gas has stable chemical properties, is not easy to react with other substances, and is non-conductive and non-flammable. After being filled into sealed equipment, it can isolate moisture, oxygen, and corrosive gases from the outside world, protect internal metal components from oxidation and corrosion, and extend the service life of the equipment.
4.Adaptable to compact equipment design
Due to its outstanding insulation and arc-extinguishing performance, SF₆ switchgear does not need to reserve a large insulation distance like air-insulated equipment, which can realize small size and compact structure, saving installation space. It is especially suitable for scenarios with limited space such as urban distribution networks and high-rise buildings.
