Why Does a Transformer Make a Humming Noise? (2026 Guide) | Derui Electric
If you have ever stood near a power transformer, you have heard it: a low, steady humming sound. Sometimes it is barely noticeable. Other times, it can be loud enough to disturb nearby residents or office workers.
Real‑world example: In 2025, residents living near a newly commissioned 10 MVA substation in a suburban area complained about excessive nighttime noise. Investigation revealed that loose tank panels were amplifying normal core vibration, increasing perceived noise levels by more than 8 dB. The utility added vibration‑damping pads and stiffened the tank, resolving the issue at a fraction of the cost of relocating the substation.
For facility managers, EPC contractors, and plant operators, transformer noise is more than an annoyance. It can signal design quality, installation issues, or even impending failure. This guide explains the science behind transformer noise, what is normal, what is not, and how to select low‑noise transformers for noise‑sensitive applications such as residential areas, hospitals, and data centers.
1. The Science Behind the Hum
transformer noise is caused bymagnetostriction. The core expands and contracts twice per AC cycle. The fundamental sound frequency is typically twice the power frequency (100 Hz in 50 Hz systems and 120 Hz in 60 Hz systems), often accompanied by higher‑frequency harmonics.
Why some are louder: Core material quality, flux density, joint design, clamping pressure.
Other sources: Winding vibration, tank resonance, loose components, harmonics from VFDs/rectifiers.
2. Normal vs. Abnormal Noise – What to Listen For
| Sound | Possible Cause | Urgency |
|---|---|---|
| Irregular crackling/popping | Partial discharge, loose connections | High – investigate immediately |
| Buzzing or rattling | Loose core/tank fittings | Medium – schedule inspection |
| Sudden loud hum increase | Overvoltage, core saturation | High – check voltage |
| Grinding/scraping | Tap changer issue | High – de‑energize |
| Intermittent hum | Loose lamination | Medium – investigate |
Crackling or popping should be investigated immediately by qualified personnel – they may indicate insulation defects.

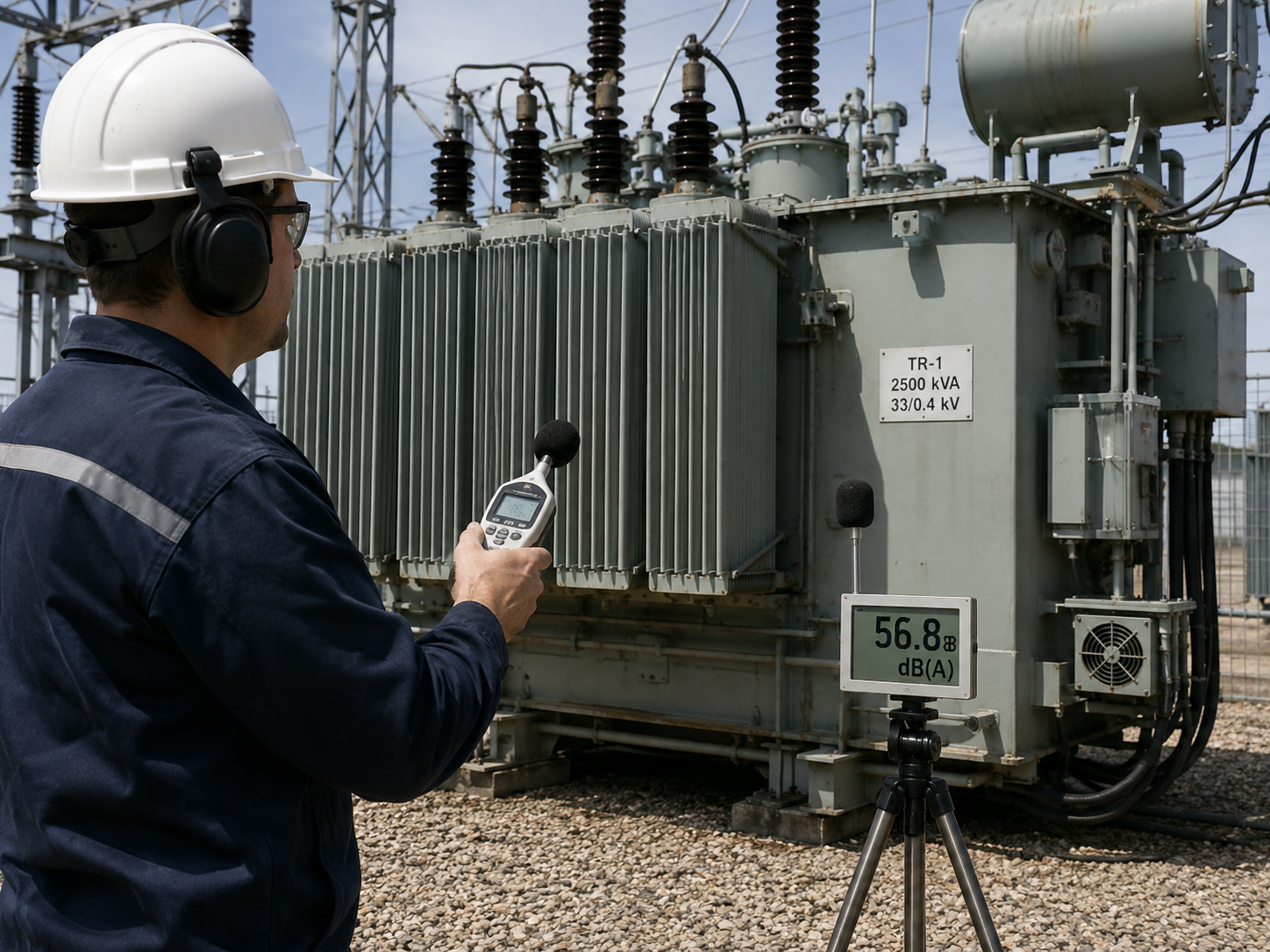

3. How Transformer Noise Is Measured and Regulated
Per IEC 60076-10: Sound pressure level (LpA, dB(A)) and sound power level (LwA).
| Environment | Typical dB(A) |
|---|---|
| Library reading room | 40 |
| Office (conversation) | 50 |
| Distribution transformer (1m) | 55–65 |
| Busy street traffic | 80 |
| Pneumatic drill | 100 |
Typical transformer noise ranges (guidance only):
| Capacity | Oil‑immersed (typical dB) | Dry‑type (typical dB) |
|---|---|---|
| 50–100 kVA | 50–55 | 55–60 |
| 500–1,000 kVA | 55–60 | 60–65 |
| 2,500–5,000 kVA | 60–65 | 65–70 |
Local regulations may enforce stricter limits (e.g., <45 dB at night in residential areas).
4. Why Does Transformer Noise Seem Louder at Night?
- Lower ambient noise – Daytime activity masks the hum.
- Higher grid voltage – Nighttime voltage rise increases flux density.
- Cooler temperatures – Sound travels more efficiently in cool, dense air.
If the increase is dramatic, check incoming voltage. Sustained overvoltage accelerates insulation aging.
5. Why Low‑Noise Transformers Matter
Regulatory fines, community complaints, workplace safety, and indoor disruptions. Choosing a quieter transformer upfront is cheaper than retrofitting sound enclosures later.
6. How to Reduce Transformer Noise – Design and Installation Strategies
| Method | Typical Reduction |
|---|---|
| High‑grade core steel | 5–8 dB |
| Amorphous metal core | 6–10 dB |
| Step‑lap core joints | 3–5 dB |
| Increased core cross‑section | 2–4 dB |
| Reinforced clamping | 3–6 dB |
| Anti‑vibration pads | 2–4 dB |
| Resonance‑damped tank | 3–5 dB |
Combined reduction: 10–15 dB (perceived loudness cut in half or more).
Installation tips: Vibration isolation mounts, clearance from walls, avoid metal‑to‑metal contact, use sound enclosures for extreme cases.
Operational factors: Keep voltage nominal, reduce harmonics, avoid continuous overload.
7. Common Misconceptions About Transformer Noise
- ❌ “A quiet transformer is always healthy.” Noise alone is not a diagnostic tool. Use oil analysis and temperature monitoring.
- ❌ “All same‑rating transformers have same noise.” False – design and materials cause up to 10 dB difference.
- ❌ “Noise increases with age.” Generally no, but loose components may add rattles.
8. How to Evaluate a Low‑Noise Transformer Supplier
- Noise guarantees – Written LwA per IEC 60076‑10?
- Core material and joints – Premium grain‑oriented steel, step‑lap joints, amorphous metal options?
- Factory noise testing – Performed on every unit? Third‑party witnessed?
- Reference projects – Experience in hospitals, schools, residential areas?
- Vibration isolation – Included or recommended?
When evaluating suppliers, ask for written noise guarantees, factory test reports, and reference projects. These are standard practices followed by manufacturers such as Derui Electric, which provides written guarantees, step‑lap cores, factory sound testing, and anti‑vibration mounts as standard.
9. Conclusion: Humming Is Normal – Excessive Humming Is Not
Normal hum: steady, moderate. Abnormal: crackling, popping, rattling, sudden increase. For noise‑sensitive sites, specify low‑noise designs, request guaranteed sound levels, and follow proper installation.
📧 Send us your project specifications – we will recommend a low‑noise transformer solution with guaranteed sound levels and full test documentation within 48 hours.
Contact Derui Electric →Frequently Asked Questions (FAQ)
Q1: Is transformer humming dangerous?
A: No. Normal 100/120 Hz hum is harmless. Crackling/popping sounds should be investigated immediately.
Q2: Can I reduce transformer noise after installation?
A: Yes, with vibration pads, enclosures, and proper ventilation. But specifying low‑noise from the start is most effective.
Q3: Why does my transformer hum louder at night?
A: Lower ambient noise, higher nighttime grid voltage, and cooler air. See Section 4.
Q4: Are dry‑type transformers noisier than oil‑immersed?
A: Generally yes, by 5–10 dB. Premium dry‑type designs with enclosures can be quieter.
Q5: Can harmonics make a transformer noisier?
A: Yes. Harmonics (5th, 7th, 11th, 13th) cause additional mechanical forces on windings, increasing vibration and noise.
Q6: What noise level is acceptable under IEC 60076‑10?
A: IEC 60076‑10 defines measurement methods, not limits. Acceptable levels are set by project specs or local regulations (e.g., 45‑50 dB at night in residential areas).
