How to Choose Transformers for Battery Energy Storage Systems (BESS)
Battery Energy Storage Systems (BESS) are becoming one of the fastest-growing segments in global power infrastructure. As renewable generation expands and grid stability becomes increasingly important, energy storage is now widely deployed across utility‑scale projects, commercial facilities, industrial applications, and microgrids.
While batteries and power conversion systems (PCS) typically receive most of the attention, transformers remain one of the most important components in the overall system architecture.
Unlike conventional distribution applications, BESS projects create unique operating conditions: bidirectional power flow, frequent charging/discharging cycles, harmonic‑rich environments, dynamic load changes, and outdoor installation challenges. When transformer selection does not fully account for these conditions, project owners may encounter reduced round‑trip efficiency, excessive heat generation, increased operating losses, power quality issues, grid compliance challenges, and higher maintenance costs. By contrast, a properly engineered transformer can improve system reliability, reduce lifecycle costs, and maximize project ROI.
Key Takeaways
- ✓ Match transformer capacity with PCS output and future expansion requirements
- ✓ Ensure stable bidirectional performance during charging and discharging
- ✓ Evaluate harmonic content and specify K‑factor when necessary
- ✓ Select suitable cooling methods for operating environments
- ✓ Consider lifecycle cost rather than purchase price alone
- ✓ Verify compliance with local utility and international standards
What Is the Role of a Transformer in a BESS?
Voltage Conversion– During discharge, transformers step up voltage from PCS output to grid levels; during charging, they step down grid voltage for batteries. Typical PCS outputs: 400V, 690V, 800V.
Electrical Isolation – Galvanic isolation between battery systems and utility networks improves safety, protects sensitive equipment, and limits fault propagation.
Grid Integration Support– Modern BESS transformers contribute to harmonic management, voltage stability, system reliability, and fault current control.
Five Technical Parameters Buyers Should Evaluate
1. transformer Capacity – Size should consider total PCS capacity, reactive power, future expansion, and temporary overload. A common practice is maintaining an additional design margin. Undersizing leads to overheating and reduced life; oversizing increases no‑load losses and capital cost.
2. Bidirectional Power Flow Capability– transformers must maintain thermal stability and efficiency in both charging (grid→battery) and discharging (battery→grid) directions. Ignoring this leads to increased losses, voltage regulation problems, and reduced reliability.
3. Harmonic Performance – PCS generate non‑linear currents. Effects include additional copper losses, winding overheating, and insulation stress. Consider K‑factor ratings, harmonic‑ready winding design, and electrostatic shielding.
4. Cooling Method Selection– Oil‑immersed transformers offer excellent heat dissipation and overload capability for outdoor utility‑scale projects; dry‑type are fire‑safe and compact for indoor or containerized systems.
| Feature | Oil-Immersed | Dry-Type |
|---|---|---|
| Capacity Range | Medium to ultra‑large | Small to medium |
| Cooling Performance | Excellent | Moderate |
| Overload Capability | High | Moderate |
| Fire Safety | Requires containment | Excellent |
| Installation | Outdoor projects | Indoor / container projects |
| Lifecycle Cost | Lower | Higher |
5. Environmental Factors – Desert regions need enhanced cooling and dust protection; coastal areas require corrosion‑resistant coating; high altitude needs modified insulation coordination; containerized systems demand compact design and vibration resistance.
Global Supply Chain & Common Mistakes
Global transformer supply chains continue to face capacity constraints, particularly for large power and utility‑scale transformers. Longer procurement cycles have made early planning increasingly important.
Common buyer mistakes: selecting based only on price (ignoring lifecycle cost), ignoring future expansion margins, and providing incomplete project information (single‑line diagram, PCS specs, ambient conditions).
Derui Electric BESS Transformer Solutions
| Product Type | Capacity Range | Voltage Range | Key Features |
|---|---|---|---|

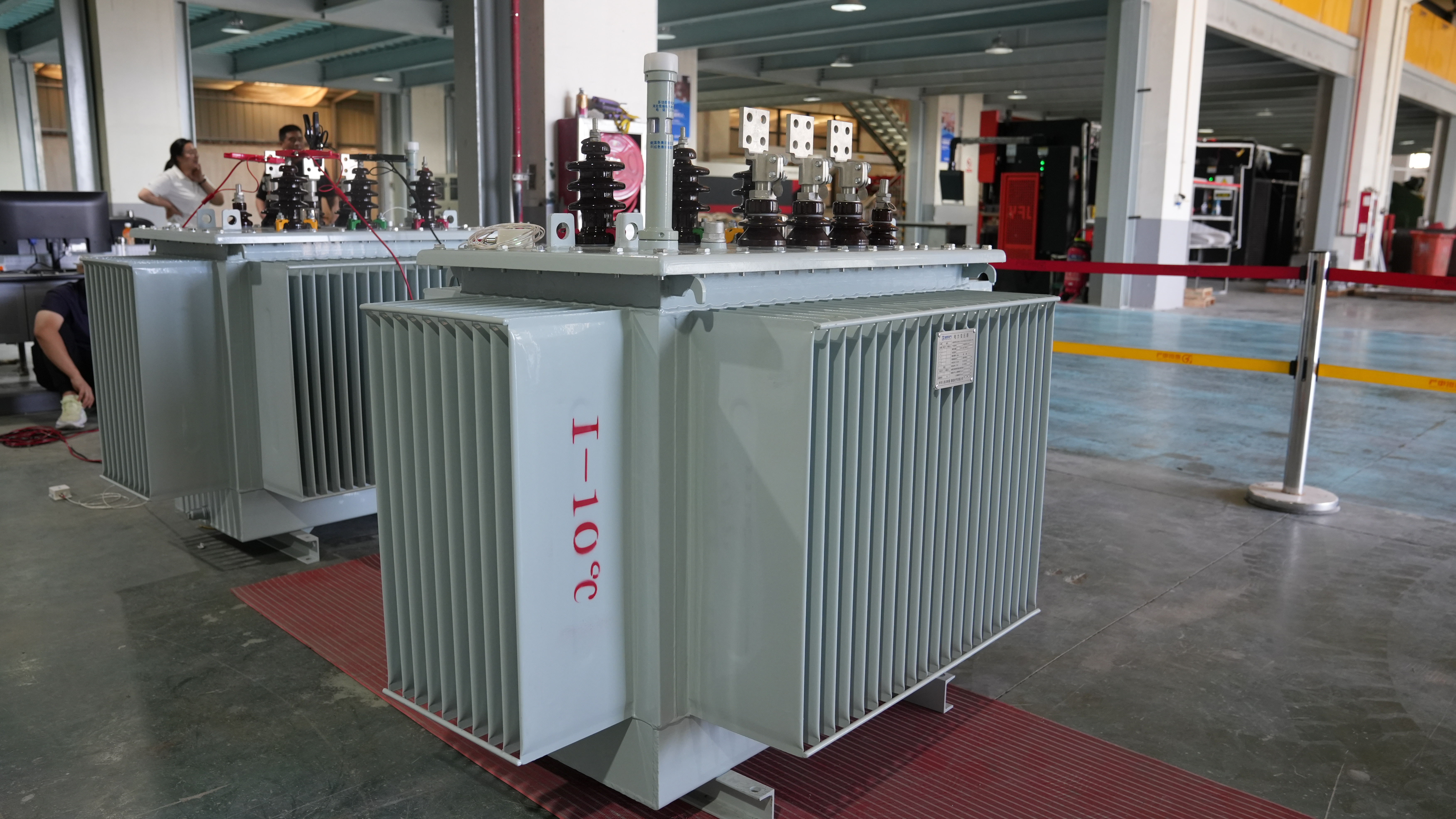

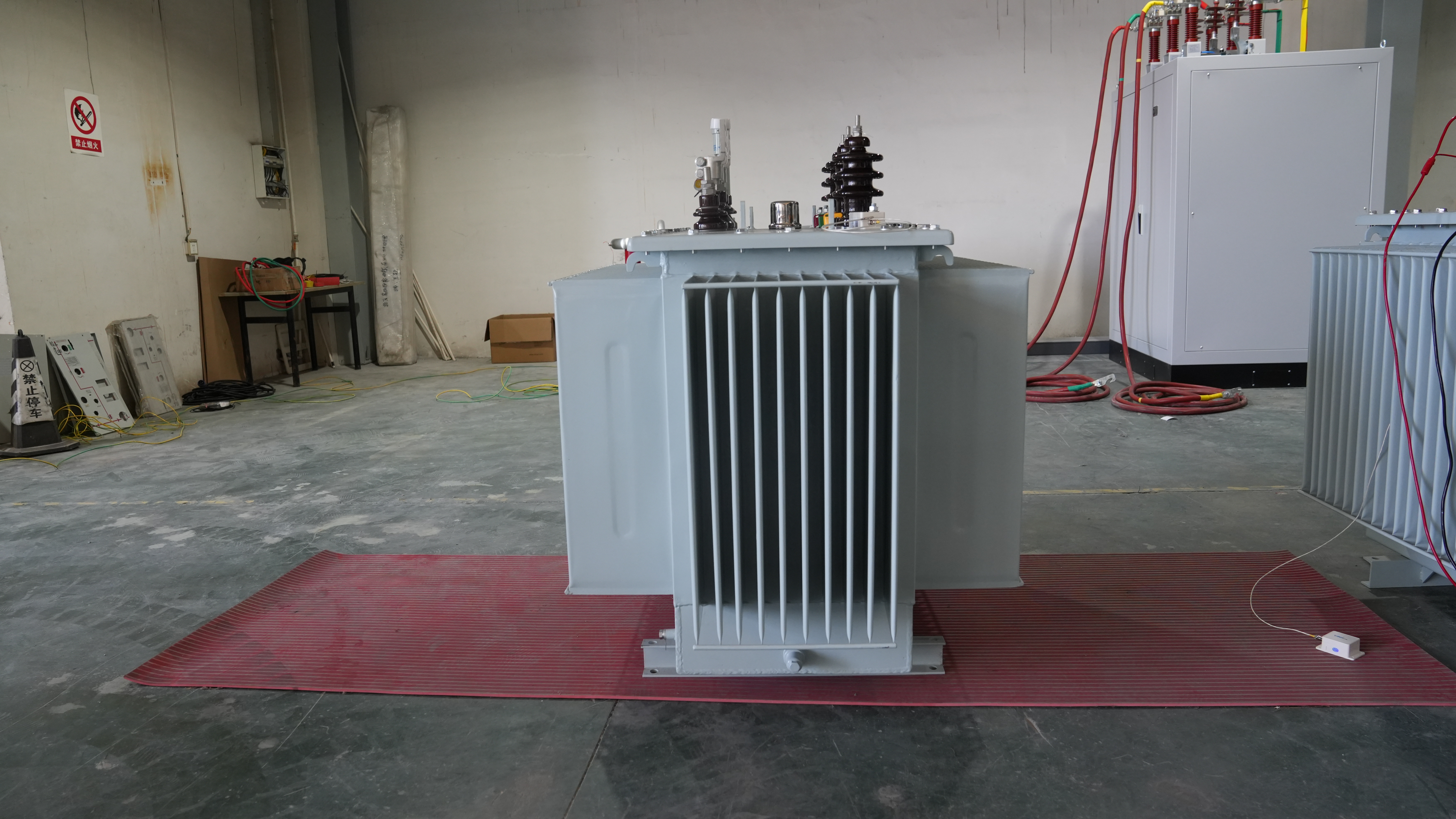

| Oil‑Immersed Step‑Up BESS transformer | 500kVA – 100 MVA+ | Up to 220kV | Bidirectional design, temporary overload capability, harmonic tolerance (K‑factor), C5‑M coating, IP55/IP65 |
| Dry‑Type BESS Transformer | 100kVA – 3.75 MVA | Up to 35kV | Fire‑safe, low noise, K‑factor available, compact footprint |
| Prefabricated Compact Substation | 100kVA – 10 MVA | Up to 35kV | Plug‑and‑play, integrated LV/MV switchgear, rapid deployment for containerized BESS |
Key advantages: Designed and tested for stable bidirectional operation; supports temporary overload depending on cooling configuration (ONAN/ONAF); IEC 60076 compliant with full type test reports; written loss guarantees; harmonic‑ready design (K‑factor up to K‑20); short lead times (12–16 weeks standard, 20–24 weeks custom); environmental adaptation (-40°C to +55°C, IP54/IP65, C5‑M).
Frequently Asked Questions (FAQ)
Q1: What transformer type is best for utility‑scale BESS projects?
A: Oil‑immersed transformers are commonly preferred for large outdoor projects because they provide excellent cooling performance and stronger overload capability.
Q2: Can dry‑type transformers support bidirectional power flow?
A: Yes. Properly designed dry‑type transformers can support bidirectional operation in battery storage systems.
Q3: Why are harmonics important in BESS transformer selection?
A: Harmonics increase losses and temperature rise, shortening transformer lifespan and affecting power quality. Specifying an appropriate K‑factor rating helps mitigate these risks.
Q4: How much design margin should be considered during sizing?
A: Actual values vary by project requirements, but future expansion and temporary overload conditions should always be considered.
📘 Suggested Internal Links
Final Thoughts
As battery energy storage deployment continues to accelerate worldwide, transformer selection has become increasingly important to project performance and investment returns. The right transformer can improve operational efficiency, maintain grid compliance, reduce long‑term losses, and increase overall reliability.
Need support for your energy storage project?
Derui Electric provides customized transformer solutions for renewable energy, industrial power systems, and utility applications. Send us your single‑line diagram, PCS specifications, grid voltage, and environmental conditions – we will provide sizing, loss calculations, and a technical quotation within 48 hours.
