Choosing the right Medium Voltage Switchgearis pretty crucial when it comes to modern power distribution. I mean, Peter Johnson, who’s a well-known expert in electrical engineering over at PowerTech Solutions, always says, “The efficiency of energy systems really depends on picking the right switchgear.” His point is so true—this equipment plays such a vital role.
In the industry, though, it’s easy for decision-makers to overlook some important details. A lot of folks don’t fully consider the entire lifecycle of the switchgear. For example, making sure it’s compatible with your existing setup is super important; a mismatch can lead to costly downtime that nobody wants. So, taking the time to carefully review all the specs is definitely the way to go.
And don’t forget about the environment! Not all switchgear handles different conditions equally well. Some parts might not perform as expected if the environment isn’t right. That’s why it’s so smart to choose trustworthy manufacturers—they often offer better reliability and peace of mind. Finding the right balance between cost and quality can be tricky, but it’s worth it. Honestly, talking to specialists before you make a final call can save you a lot of headaches down the line.
Understanding Medium Voltage Switchgear Basics
Medium Voltage Switchgear plays a vital role in electrical distribution systems. It generally operates between 1 kV and 38 kV. Understanding its components is crucial for effective maintenance and operation. Essential parts include circuit breakers, disconnectors, and fuses. Each component has specific functions and should be chosen based on application needs.
When selecting the right switchgear, consider environmental factors. For instance, humidity and temperature can influence performance. Adequate insulation is critical. You may also need to assess clearance distances. This ensures safety and reliability. User manuals often highlight operational limits, but there's merit in seeking expert guidance. Knowledge from professionals can avoid potential pitfalls.
Some may overlook maintenance considerations. Regular checks can prevent unexpected failures. Moreover, integrating advanced monitoring systems can enhance reliability. It’s essential to remember that not all switchgear is created equal. Choosing the wrong type can lead to inefficiencies. Thoughtful selection based on criteria is important for long-term performance. Understanding the basics allows for better decision-making in complex situations.
Key Factors in Medium Voltage Switchgear Selection
When selecting medium voltage switchgear, several key factors come into play. The operational environment is crucial. For instance, an Outdoor Medium Voltage Switchgear requires robust materials to withstand varying weather conditions. Moisture, dust, and temperature fluctuations can affect performance. Choosing the right enclosure can mitigate risks associated with these elements.
Safety features are another important aspect. Ensure the switchgear has adequate protection devices. Circuit breakers and fuses must operate effectively under fault conditions. It’s essential to evaluate the ease of maintenance. Some designs might complicate servicing, leading to potential downtimes.
Lastly, think about the scalability of your switchgear solution. As your power needs evolve, will your switchgear adapt accordingly? Solutions that allow flexibility can save costs in the long run. It's important to weigh the initial investment against future needs. Balancing these factors ensures a reliable and efficient power management system.
Evaluating Current and Voltage Ratings
When selecting medium voltage switchgear, evaluating current and voltage ratings is crucial. High-quality switchgear must match the expected operational conditions precisely. According to a recent industry report by the International Electrotechnical Commission, an estimated 30% of electrical failures are linked to inadequate switchgear ratings. This statistic emphasizes the importance of thorough assessment.
Current ratings for switchgear are essential. They determine how much electrical current the equipment can safely carry. Oversizing can lead to unnecessary costs. Conversely, undersizing can result in equipment failure or safety hazards. The American National Standards Institute stresses that medium voltage switchgear should have a current rating exceeding the maximum load. This provides a safety buffer, reducing operational risk.
Voltage ratings deserve equal consideration. They indicate the maximum voltage the switchgear can withstand. A mismatch can lead to catastrophic failures. The IEEE shows that improperly rated equipment is responsible for a significant percentage of electrical outages. Evaluating the specific application needs helps ensure correct voltage ratings. Understanding these fundamental aspects can significantly enhance system reliability and longevity.
Assessing Environmental Conditions for Switchgear
Choosing the right medium voltage switchgear requires careful consideration of environmental conditions. These factors significantly influence the performance and reliability of the equipment. High humidity, dust, and extreme temperatures can lead to issues in operation. Adverse weather conditions can accelerate wear and tear, impacting functionality.
Assessing site conditions helps in making informed decisions. Areas with high moisture content may require specific coatings to prevent corrosion. Locations prone to temperature fluctuations necessitate equipment rated for varying thermal conditions. Dusty environments warrant features like sealed enclosures to keep contaminants out.
Failing to properly evaluate these factors can lead to unforeseen challenges. Regular maintenance and inspections become crucial in such cases. Ignoring these elements can cost time and resources in the long run. It's essential to engage with experts who can provide guidance tailored to unique environments. This proactive approach not only enhances reliability but also extends the lifespan of the switchgear.
Analyzing Safety Standards and Compliance Requirements
When choosing medium voltage switchgear, understanding safety standards is crucial. Safety compliance ensures that the switchgear can operate effectively without posing risks. The International Electrotechnical Commission (IEC) and the National Electrical Manufacturers Association (NEMA) set guidelines that manufacturers must follow. Ignoring these standards can lead to failures in safety and operation.
Regular inspections and maintenance are vital for adherence to safety standards. Insufficient attention to these practices can result in unforeseen hazards. Each Medium Voltage Cubicle should undergo rigorous testing to confirm its reliability. Inspectors should evaluate insulation levels and switch operation. Remember, even minor oversights in safety protocols can initiate significant operational risks.
It's essential to stay updated with evolving compliance requirements. Regulations may change, and staying knowledgeable is a responsibility. Companies should have a safety officer to oversee compliance related to their medium voltage switchgear. A well-informed team can prevent costly disruptions. A proactive approach to safety not only protects equipment but also assures the workforce.
Comparing Different Types of Medium Voltage Switchgear
When selecting medium voltage switchgear, various types must be evaluated. The most common types include metal-clad switchgear, gas-insulated switchgear, and air-insulated switchgear. Each type has its own benefits and drawbacks. For instance, metal-clad switchgear is often chosen for its robustness and extensive reliability in harsh conditions. However, it requires ample space. In contrast, gas-insulated switchgear provides a compact solution, making it ideal for urban installations.
Air-insulated switchgear is simpler and less costly, but it may not perform well in adverse weather conditions. A keen understanding of these variations is crucial. Electric engineers often face challenges when specifying the right type. Factors like voltage rating, maintenance needs, and installation space play essential roles.
Care should be taken to ensure the chosen Medium Voltage Cabinet meets specific system requirements. Not all switchgear performs equally in different scenarios. Engaging with experienced professionals for insights can provide clarity. Remember to assess potential shortcomings in your selections. This proactive approach can lead to smarter long-term investments, minimizing future operational headaches.
Essential Tips for Choosing Medium Voltage Switchgear - Comparing Different Types of Medium Voltage Switchgear
| Type of Switchgear | Key Features | Advantages | Disadvantages |
| Air-insulated Switchgear (AIS) | Uses air as an insulating medium. | Lower initial cost, easy maintenance. | Larger footprint, susceptible to weather effects. |
| Gas-insulated Switchgear (GIS) | Uses SF6 gas as insulation. | Compact design, less maintenance, high reliability. | Higher initial cost, requires special handling of SF6. |
| Hybrid Switchgear | Combines AIS and GIS technologies. | Space-saving, flexibility in design. | Complexity in design, potentially higher costs. |
| Oil-Insulated Switchgear | Uses oil for insulation and cooling. | Good thermal capacity, efficient operation. | Environmental concerns, larger size. |
Understanding Maintenance and Support Considerations
Maintenance and support are crucial when selecting medium voltage switchgear. Understanding the complexities of a Medium Voltage Substation can guide your decision. A well-maintained system ensures the safety and efficiency of electrical operations. Regular inspections can identify potential issues before they become serious problems. However, many overlook this aspect, leading to costly repairs.
Proper support structures are essential. Establish a clear protocol for maintenance schedules. Consider the availability of spare parts. Many operators find themselves struggling when key components fail unexpectedly. Training staff on the specific equipment is also vital. Inadequate knowledge can hinder effective maintenance and increase downtime.
Additionally, factor in the support from manufacturers or suppliers. Reliable assistance can make a significant difference. An experienced team can provide insights and troubleshooting help when needed. However, not all providers offer equal levels of support. Research thoroughly, and seek testimonials when evaluating options. Reflecting on these issues can lead you to a more informed selection, reducing risks for your medium voltage substation.

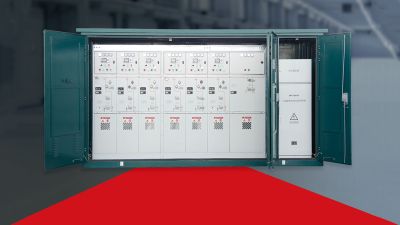

Exploring the Benefits and Features of the DFW10-12 Outdoor High Voltage Ring Main Unit (RMU) for Modern Power Distribution
The DFW10-12 Outdoor High Voltage Ring Main Unit (RMU) is a robust solution for modern power distribution systems, offering a range of benefits that enhance performance and reliability. One of the key features of this unit is its superior material performance, which is comparable to S304 stainless steel or GRC (glass fiber reinforced cement). This ensures not only durability but also an excellent resistance to environmental stressors, making it ideal for outdoor applications.
Additionally, the design of the RMU incorporates a shell engineered with sufficient mechanical strength, guaranteeing that it remains intact throughout the processes of lifting, transportation, and installation. With a protection level of IP43, the unit effectively safeguards against dust and water ingress, ensuring longevity and dependable operation in varied weather conditions. The choice of metal for the ring cage, with a nominal thickness of at least 2mm, adheres to rigorous standards, meeting the B-class accuracy requirements specified in "GB/T 708." This degree of precision in construction contributes to the unit's overall efficiency and reliability in distributing high voltage.
Furthermore, the adoption of these high-quality materials and design practices aligns with industry reports that underline the significance of durability and operational integrity in high voltage systems. As organizations continue to seek sustainable and reliable solutions for energy distribution, the features of the DFW10-12 RMU underscore its value in providing an efficient, resilient, and adaptable infrastructure, essential for meeting the demands of modern energy needs.
FAQS
: Consider humidity, dust, and temperature. These factors affect performance and reliability.
High moisture requires special coatings to prevent corrosion. Neglecting this can lead to failures.
Sealed enclosures protect against dust and contaminants. Dusty environments can cause operational issues.
Safety standards ensure operational effectiveness and risk avoidance. Compliance is crucial for safe operation.
Regular inspections are vital for safety compliance. Missing inspections can lead to unforeseen hazards.
Ignoring standards can result in significant operational risks. Minor oversights can escalate problems rapidly.
A safety officer should monitor compliance. Their role helps prevent costly disruptions in operation.
Staying informed about evolving requirements is critical. Regular training can ensure preparedness.
Proactive maintenance involves regular checks and updates. It helps enhance reliability and extend equipment lifespan.
Experts provide tailored recommendations based on unique conditions. Their insights help avoid costly mistakes.
Conclusion
When selecting Medium Voltage Switchgear, it is essential to grasp the fundamental concepts and key factors that influence the decision-making process. Understanding the basics, including current and voltage ratings, helps ensure compatibility with the existing electrical systems. Environmental conditions must also be assessed to ensure the switchgear operates efficiently in its intended setting.
Moreover, analyzing safety standards and compliance requirements is crucial for maintaining operational integrity and protecting personnel. Comparing different types of Medium Voltage Switchgear allows for a better understanding of their functions and advantages. Lastly, attention should be given to maintenance and support considerations to ensure longevity and reliability, making informed choices a top priority in the selection process of Medium Voltage Switchgear.
