As more and more people realize how important it is to have a reliable and efficient way to distribute power, Gas Insulated Substations (GIS) are really stepping into the spotlight as a key part of modern energy systems. These high-tech substations are pretty impressive—they’re compact, cause less environmental fuss, and are crucial for smoothly connecting renewable energy sources and making our power grids more dependable. At DERUI ELECTRIC Co., LTD., we get how vital the latest technology is in the electrical world. That’s why we use top-of-the-line equipment, like imported laser cutters from Germany and domestically made CNC punching machines. We’re all about quality, so we ensure our GIS solutions not only are innovative but also meet the highest standards. In this blog, I’ll walk you through the benefits of Gas Insulated Substations for today’s energy systems, and how they’re helping build agreener, more reliable energy future.
Gas Insulated Substations, orGIS for short, are really starting to take off as the go-to choice for modern energy setups. You see, traditional substations often hog a lot of space and need quite a bit of maintenance, which can get pretty expensive and tricky to manage. On the flip side, GIS technology is all about compactness—meaning it takes up way less land, which is a game-changer especially in busy cities where land is at a premium.
Just recently, Madhya Pradesh installed its first GIS substation in Indore, and that’s a clear sign that more places are jumping on the GIS bandwagon to handle the growing demand for electricity without breaking a sweat. The shift isn’t just because these systems save space — they’re also safer and more reliable. Utilities have been loving how quickly they can get things up and running with GIS, speeding up project timelines and helping meet infrastructure needs faster. Plus, since many GIS setups practically don’t require maintenance, they’re super attractive—like those dedicated data center substations that aim to cut down on carbon emissions and keep operational headaches to a minimum.

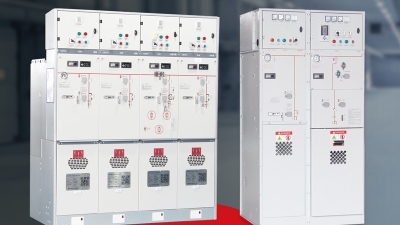

The DRM-12 Fully Insulated Ring Network Switchgear stands at the forefront of modern electrical networks, offering robust technical solutions embedded in its design. These switchgear units, standardized as per DL/T 728 and DL/T791, demonstrate compliance with stringent regulations, ensuring reliability and safety in operation. Notably, the use of SF6 gas aligns with IEC standards, contributing to superior insulating properties and reduced environmental impact.
The dimensions of DRM-12 units are meticulously optimized for functional efficiency. The load switch unit and cable connection unit have a width of 375mm, while the circuit breaker and combined electrical unit cabinet measure 420mm in width. A key feature is the PT unit's cabinet, boasting a generous width of 600mm and depth of 750mm, enabling efficient installation in compact spaces. With a total height of 1950mm, including the instrument box and top expanded bus, the design facilitates easy accessibility for maintenance without compromising operational functionality.
Material integrity is paramount for ensuring durability and performance under various environmental conditions. The DRM-12’s gas box shell meets corrosion resistance requirements, with a nominal thickness of at least 2mm, constructed from no lower than 304 stainless steel. The frame utilizes aluminum-zinc plate with a galvanized layer thickness of AZ150 or greater, aligning with EN 10346:2015 standards. This combination of robust materials and precise engineering exemplifies how DRM-12 switchgear contributes to the resilience and sustainability of today's electrical infrastructures.
: Gas Insulated Substations (GIS) are advanced energy systems that use gas insulation to occupy a smaller footprint compared to traditional substations, making them increasingly popular for modern energy applications.
The main advantages of GIS include a compact design, reduced land requirements, enhanced safety and reliability, faster implementation, and minimal maintenance needs.
GIS offer economic advantages by lowering land acquisition and construction costs due to their reduced physical footprint, which is particularly beneficial in urban areas.
GIS are crucial for urban settings because their compact design allows for easier integration into existing infrastructure, reducing the need for space and minimizing disruption during installation.
GIS support sustainability and net-zero energy goals by serving as a reliable foundation for renewable energy integration and distribution, aligning with energy-efficient programs promoted by governments.
The maintenance-free nature of GIS reduces operational complexities and costs for utilities, particularly in applications such as data centers where minimizing carbon footprints is essential.
The launch of Madhya Pradesh's first GIS substation in Indore showcases the growing trend of deploying GIS solutions to efficiently meet rising electricity demands.
GIS facilitate quicker project timelines because their compact nature allows for easier integration and installation processes, minimizing disruptions and expediting project completion.
GIS align with innovative energy solutions like hybrid photovoltaic-thermal systems and agrivoltaics, which emphasize multifunctionality and lower environmental impact, contributing to a more sustainable energy landscape.
GIS offer benefits such as less space requirement, lower construction costs, and the ability to support advanced energy technologies, providing a more efficient alternative to traditional air-insulated substations.
